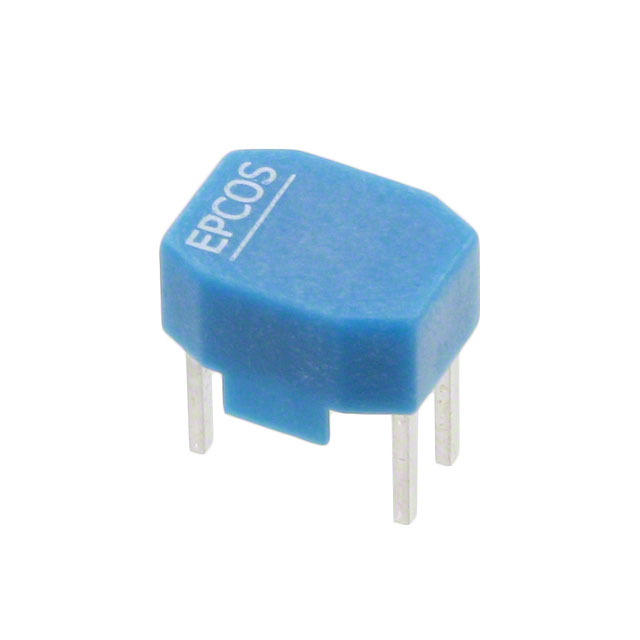

B82796C2225N265
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B82796C2225N265 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B82796C2225N265 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B82796C2225N265 |
|---|---|
| Manufacturer | EPCOS |
| Description | CMC 2.2MH 100MA 4LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | B82796C2225N265 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | CMC 2.2MH 100MA 4LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5228 pcs | Data sheet | B82796C2 Series |
| Category | Filters | Voltage Rating - DC | 80V |
| Voltage Rating - AC | 42V | Size / Dimension | 0.362" L x 0.264" W (9.20mm x 6.70mm) |
| Series | B82796 | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Horizontal, 8 PC Pin |
| Other Names | 495-5779-2 B82796C2225N265-ND |
Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 2.2mH @ 10kHz | Height (Max) | 0.185" (4.70mm) |
| Filter Type | Signal Line | Features | - |
| Detailed Description | 2.2mH @ 10kHz 4 Line Common Mode Choke Through Hole 100mA DCR 400 mOhm (Typ) | DC Resistance (DCR) (Max) | 400 mOhm (Typ) |
| Current Rating (Max) | 100mA | Approvals | - |
