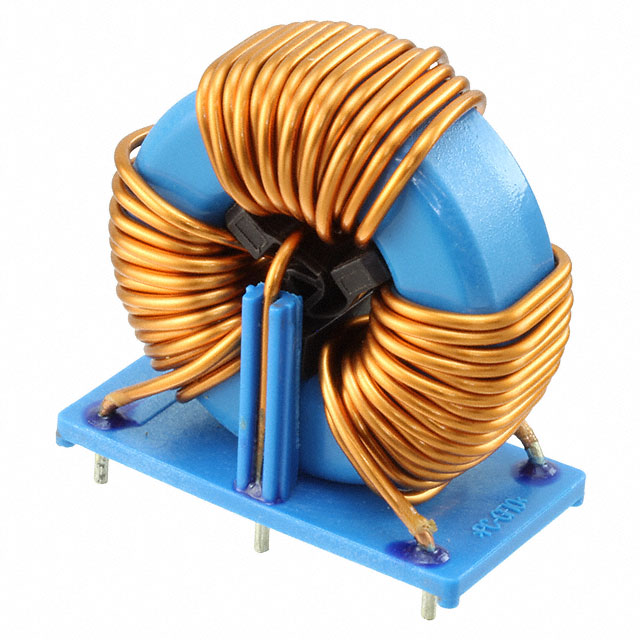

B82746S4103A021
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B82746S4103A021 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B82746S4103A021 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B82746S4103A021 |
|---|---|
| Manufacturer | EPCOS |
| Description | COMMON MODE CHOKE 2MH 10A 3LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 96 pcs | 192 pcs | 576 pcs | 1056 pcs |
|---|---|---|---|---|---|
| $4.032 | $2.867 | $2.778 | $2.598 | $2.383 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | B82746S4103A021 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | COMMON MODE CHOKE 2MH 10A 3LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13383 pcs | Data sheet | B82746S4103A02x Datasheet |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 500/300V | Size / Dimension | 1.772" L x 0.906" W (45.00mm x 23.00mm) |
| Series | B82746 | Ratings | - |
| Packaging | Tray | Package / Case | Vertical, 6 PC Pin |
| Other Names | 495-7008 B82746S4103A 21 B82746S4103A21 |
Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 2mH @ 10kHz |
| Height (Max) | 1.850" (47.00mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 2mH @ 10kHz 3 Line Common Mode Choke Through Hole 10A DCR 9.6 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 9.6 mOhm (Typ) | Current Rating (Max) | 10A |
| Approvals | UR |
