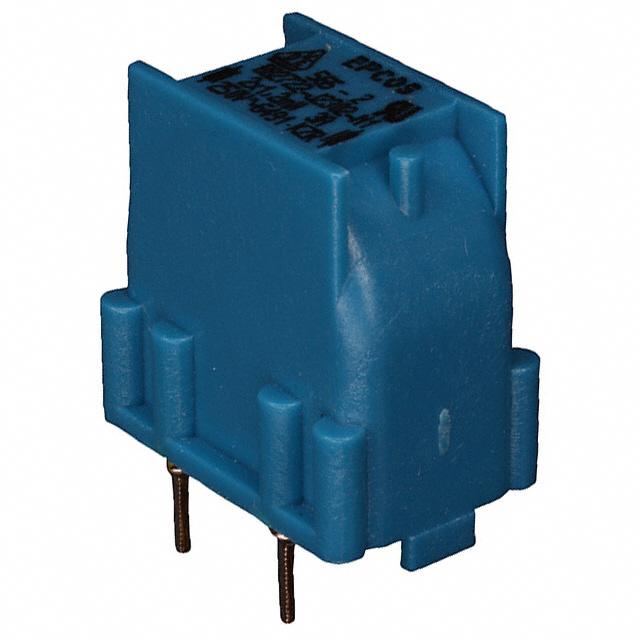

B82722J2302N001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B82722J2302N001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B82722J2302N001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B82722J2302N001 |
|---|---|
| Manufacturer | EPCOS |
| Description | CMC 1.2MH 3A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.913 | $0.843 | $0.59 | |||
| 540 pcs | 1080 pcs | 2700 pcs | |||
| $0.478 | $0.435 | $0.421 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B82722J2302N001 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | CMC 1.2MH 3A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81332 pcs | Data sheet | B82722A,J Series Datasheet |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 0.917" L x 0.634" W (23.30mm x 16.10mm) |
| Series | B82722 | Ratings | - |
| Packaging | Tray | Package / Case | Vertical, 4 PC Pin |
| Other Names | 495-2748 B82722J2302N 1 B82722J2302N 1 B82722J2302N1 |
Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 34 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 1.2mH @ 10kHz |
| Height (Max) | 1.000" (25.40mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 1.2mH @ 10kHz 2 Line Common Mode Choke Through Hole 3A DCR 56 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 56 mOhm (Typ) | Current Rating (Max) | 3A |
| Approvals | ENEC, UR, VDE |
