B82722A2801N020

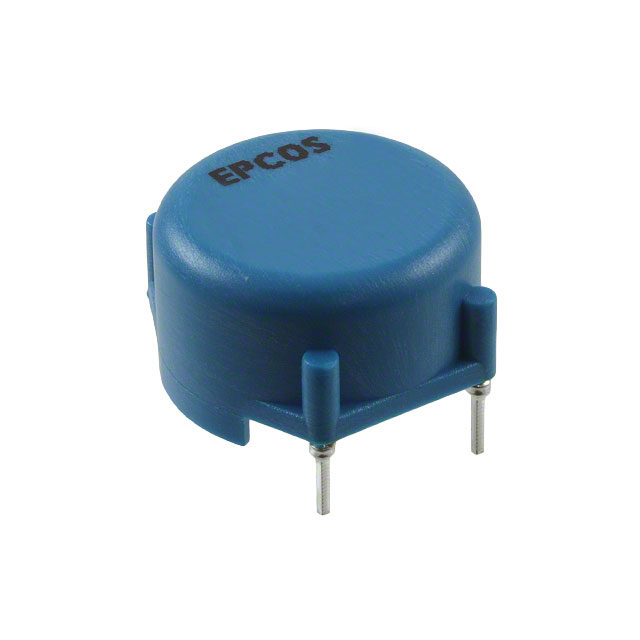

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B82722A2801N020 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B82722A2801N020 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B82722A2801N020 |
|---|---|
| Manufacturer | EPCOS |
| Description | CMC 27MH 800MA 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.016 | $0.938 | $0.657 | |||
| 600 pcs | 1200 pcs | 3000 pcs | |||
| $0.532 | $0.485 | $0.469 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B82722A2801N020 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | CMC 27MH 800MA 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75034 pcs | Data sheet | B82722A,J Series Datasheet |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 0.894" L x 0.878" W (22.70mm x 22.30mm) |
| Series | B82722 | Ratings | - |
| Packaging | Tray | Package / Case | Horizontal, 4 PC Pin |
| Other Names | 495-77072 B82722A2801N 20 B82722A2801N020-ND B82722A2801N20 B82722A2801N20-ND |
Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 34 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 27mH @ 10kHz |
| Height (Max) | 0.524" (13.30mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 27mH @ 10kHz 2 Line Common Mode Choke Through Hole 800mA DCR 600 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 600 mOhm (Typ) | Current Rating (Max) | 800mA |
| Approvals | ENEC, UR, VDE |
