Home > Products > Transformers > Switching Converter, SMPS Transformers > B78307A2276A003

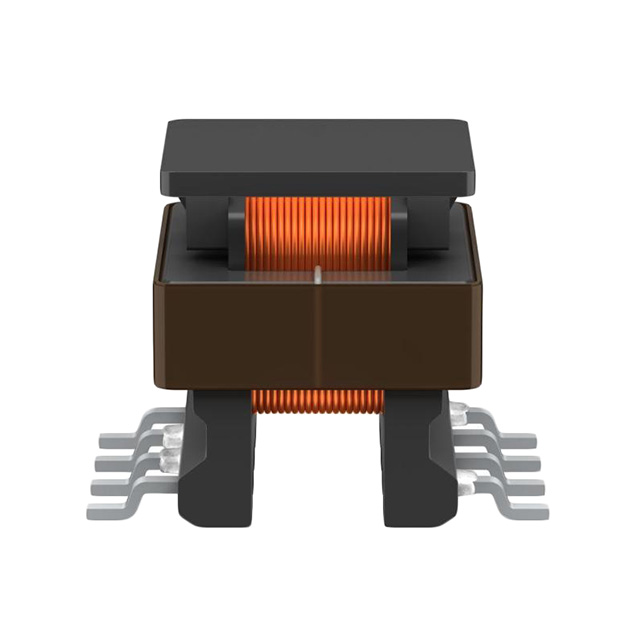

B78307A2276A003

B78307A2276A003

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B78307A2276A003 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B78307A2276A003
Manufacturer	EPCOS
Description	E10 SMD TRANSFORMER
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 22927 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs
Reference Price (In US Dollars)	$2.794	$2.539	$1.726

Product parameter
Data sheet

Product parameter

Part Number	B78307A2276A003	Manufacturer	EPCOS
Description	E10 SMD TRANSFORMER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22927 pcs	Data sheet	B78307A2276A003
Category	Transformers	Voltage - Primary	-
Voltage - Isolation	-	Voltage - Auxiliary	-
Type	-	Style	-
Series	*	Packaging	Original-Reel®
Other Names	495-76658-6	Operating Temperature	-40°C ~ 150°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	-	Inductance @ Frequency	100µH @ 50kHz
Frequency	100 ~ 400kHz	Chipset Manufacturer	-
Applications	-
