B78148E1101M000

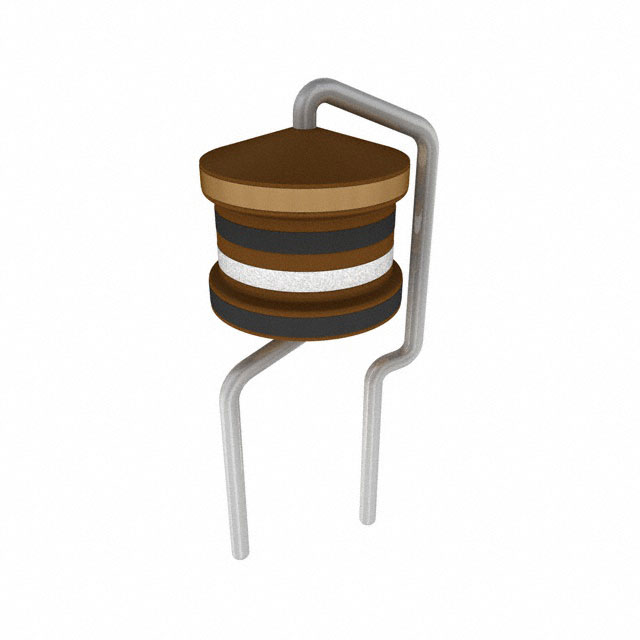

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B78148E1101M000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B78148E1101M000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B78148E1101M000 |
|---|---|
| Manufacturer | EPCOS |
| Description | FIXED IND 100NH 7.3A 15 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | 50000 pcs |
|---|---|---|---|---|---|
| $0.063 | $0.059 | $0.056 | $0.054 | $0.051 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | B78148E1101M000 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | FIXED IND 100NH 7.3A 15 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 462581 pcs | Data sheet | B78108E, B78148E Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.157" Dia (4.00mm) | Shielding | Unshielded |
| Series | BC+ | Ratings | - |
| Q @ Freq | 50 @ 7.96MHz | Packaging | Tape & Reel (TR) |
| Package / Case | Radial | Other Names | 495-6950-2 B78148E1101M |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1MHz | Inductance | 100nH |
| Height - Seated (Max) | 0.453" (11.50mm) | Frequency - Self Resonant | 700MHz |
| Detailed Description | 100nH Unshielded Wirewound Inductor 7.3A 15 mOhm Max Radial | DC Resistance (DCR) | 15 mOhm Max |
| Current Rating | 7.3A | Current - Saturation | 17A |
