Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B65847A0000R030

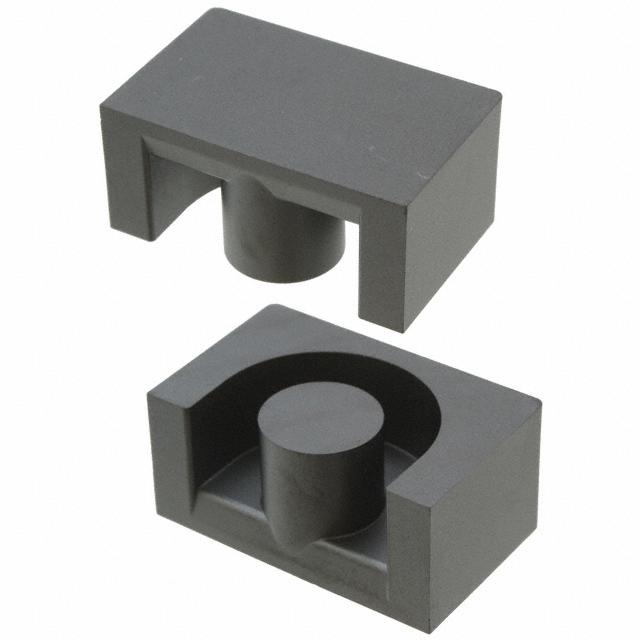

B65847A0000R030

B65847A0000R030

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65847A0000R030 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B65847A0000R030
Manufacturer	EPCOS
Description	FERRITE CORE EP 6.7UH N30 2PCS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 98374 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.872	$0.751	$0.571	$0.541	$0.481
	$0.451	$0.421	$0.386	$0.376

Product parameter
Data sheet

Product parameter

Part Number	B65847A0000R030	Manufacturer	EPCOS
Description	FERRITE CORE EP 6.7UH N30 2PCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	98374 pcs	Data sheet	B65847,48 Series Datasheet
Category	Magnetics - Transformer, Inductor Components	Width	15.30mm
Tolerance	-20%, +30%	Supplier Device Package	EP 20
Series	B65847	Other Names	495-5324 B65847A R 30 B65847AR30 B65847AR30-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Minimum Core Cross Section (Amin) mm²	60
Material	N30	Manufacturer Standard Lead Time	51 Weeks
Length	24.50mm	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Initial Permeability (µi)	5200	Inductance Factor (Al)	6.7µH
Height	10.80mm	Gap	Ungapped
Finish	Uncoated	Effective Permeability (µe)	2730
Effective Magnetic Volume (Ve) mm³	3120	Effective Length (le) mm	40
Effective Area (Ae) mm²	78	Diameter	-
Core Type	EP	Core Factor (ΣI/A) mm1	0.51
