Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B65843A0000R087

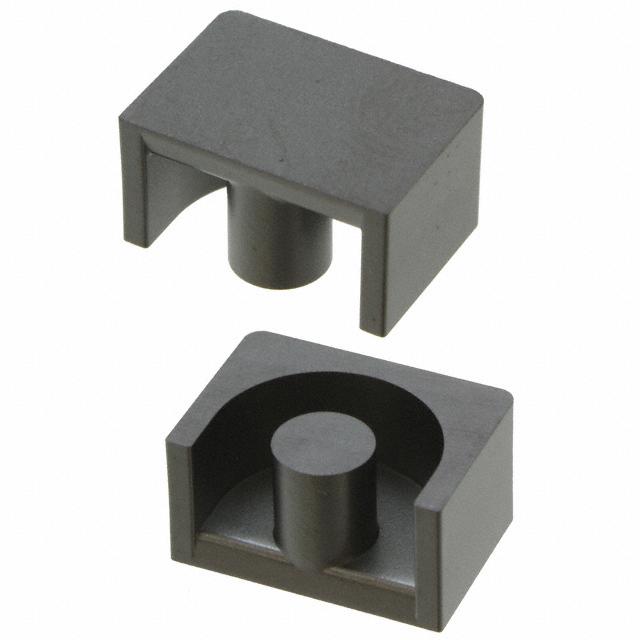

B65843A0000R087

B65843A0000R087

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65843A0000R087 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B65843A0000R087
Manufacturer	EPCOS
Description	FERRITE CORE EP 1.6UH N87 2PCS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 234988 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.237	$0.195	$0.168	$0.151	$0.134
	$0.121	$0.111	$0.094	$0.087

Product parameter
Data sheet

Product parameter

Part Number	B65843A0000R087	Manufacturer	EPCOS
Description	FERRITE CORE EP 1.6UH N87 2PCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	234988 pcs	Data sheet	B65843A,44 Series Datasheet
Category	Magnetics - Transformer, Inductor Components	Width	9.00mm
Tolerance	-20%, +30%	Supplier Device Package	EP 13
Series	B65843A	Other Names	495-5317 B65843A R 87 B65843AR87 B65843AR87-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Minimum Core Cross Section (Amin) mm²	14.9
Material	N87	Manufacturer Standard Lead Time	24 Weeks
Length	12.80mm	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Initial Permeability (µi)	2200	Inductance Factor (Al)	1.6µH
Height	6.50mm	Gap	Ungapped
Finish	Uncoated	Effective Permeability (µe)	1580
Effective Magnetic Volume (Ve) mm³	472	Effective Length (le) mm	24.2
Effective Area (Ae) mm²	19.5	Diameter	-
Core Type	EP	Core Factor (ΣI/A) mm1	1.24
