Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B65841A0000R030

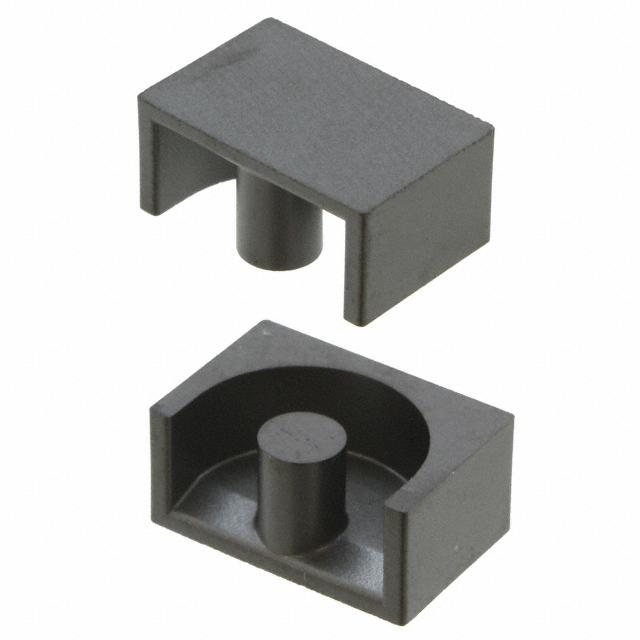

B65841A0000R030

B65841A0000R030

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65841A0000R030 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B65841A0000R030
Manufacturer	EPCOS
Description	FERRITE CORE EP 2UH N30 2PCS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 199383 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.265	$0.24	$0.178	$0.169	$0.151
	$0.142	$0.133	$0.115	$0.111

Product parameter
Data sheet

Product parameter

Part Number	B65841A0000R030	Manufacturer	EPCOS
Description	FERRITE CORE EP 2UH N30 2PCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	199383 pcs	Data sheet	B65841,42 Series Datasheet
Category	Magnetics - Transformer, Inductor Components	Width	7.85mm
Tolerance	-20%, +30%	Supplier Device Package	EP 10
Series	B65841	Other Names	495-76571 B65841A R 30 B65841A0000R030-ND B65841AR30 B65841AR30-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Minimum Core Cross Section (Amin) mm²	8.5
Material	N30	Manufacturer Standard Lead Time	26 Weeks
Length	11.80mm	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Initial Permeability (µi)	4300	Inductance Factor (Al)	2µH
Height	5.20mm	Gap	Ungapped
Finish	Uncoated	Effective Permeability (µe)	2700
Effective Magnetic Volume (Ve) mm³	217	Effective Length (le) mm	19.2
Effective Area (Ae) mm²	11.3	Diameter	-
Core Type	EP	Core Factor (ΣI/A) mm1	1.7
