Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B65815E1000J041

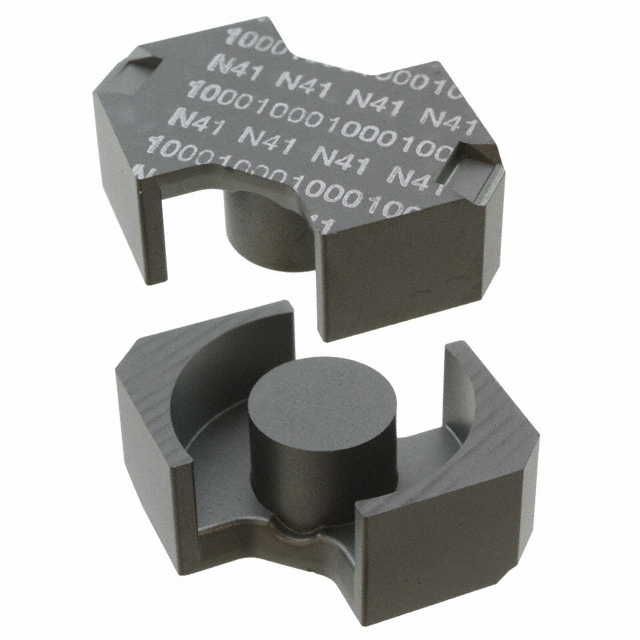

B65815E1000J041

B65815E1000J041

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65815E1000J041 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B65815E1000J041
Manufacturer	EPCOS
Description	FERRITE CORE RM 1UH N41 2PCS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 43171 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.775	$1.513	$1.151	$1.118
	$0.987	$0.921	$0.855	$0.822

Product parameter
Data sheet

Product parameter

Part Number	B65815E1000J041	Manufacturer	EPCOS
Description	FERRITE CORE RM 1UH N41 2PCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	43171 pcs	Data sheet	B65815,16
Category	Magnetics - Transformer, Inductor Components	Width	16.10mm
Tolerance	±5%	Supplier Device Package	RM 12
Series	B65815	Other Names	495-5292 B65815E1000J 41 B65815E1000J41 B65815E1000J41-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Minimum Core Cross Section (Amin) mm²	125
Material	N41	Manufacturer Standard Lead Time	24 Weeks
Length	37.60mm	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Initial Permeability (µi)	2800	Inductance Factor (Al)	1µH
Height	12.30mm	Gap	Gapped
Finish	Uncoated	Effective Permeability (µe)	311
Effective Magnetic Volume (Ve) mm³	8320	Effective Length (le) mm	57
Effective Area (Ae) mm²	146	Diameter	-
Core Type	RM	Core Factor (ΣI/A) mm1	0.39
