B65813N0630A048

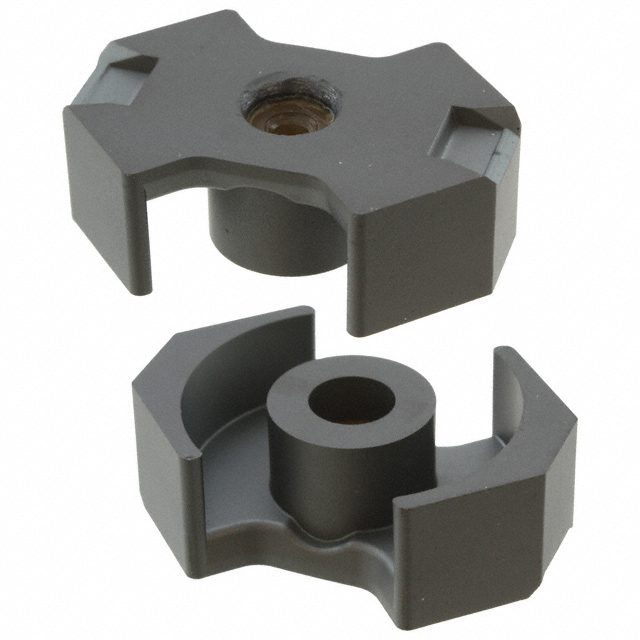

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65813N0630A048 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B65813N0630A048 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B65813N0630A048 |
|---|---|
| Manufacturer | EPCOS |
| Description | FERRITE CORE RM 630NH N48 2PCS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.514 | $1.289 | $0.981 | $0.953 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.841 | $0.785 | $0.729 | $0.701 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | B65813N0630A048 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | FERRITE CORE RM 630NH N48 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49772 pcs | Data sheet | B65813,14, B65679 |
| Category | Magnetics - Transformer, Inductor Components | Width | 13.50mm |
| Tolerance | ±3% | Supplier Device Package | RM 10 |
| Series | B65813 | Other Names | 495-5283 B65813N 630A 48 B65813N630A48 B65813N630A48-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material | N48 |
| Manufacturer Standard Lead Time | 24 Weeks | Length | 28.50mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Factor (Al) | 630nH |
| Height | 9.35mm | Gap | Gapped |
| Finish | Uncoated | Effective Permeability (µe) | 254 |
| Effective Magnetic Volume (Ve) mm³ | 3490 | Effective Length (le) mm | 42 |
| Effective Area (Ae) mm² | 83 | Diameter | - |
| Core Type | RM | Core Factor (ΣI/A) mm1 | 0.5 |
