B65811J0000R097
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65811J0000R097 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B65811J0000R097 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B65811J0000R097 |
|---|---|
| Manufacturer | EPCOS |
| Description | FERRITE CORE RM 3.3UH N97 2PCS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.73 | $0.63 | $0.479 | $0.453 | $0.403 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.378 | $0.353 | $0.324 | $0.315 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | B65811J0000R097 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | FERRITE CORE RM 3.3UH N97 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68137 pcs | Data sheet | B65811,12 Series |
| Category | Magnetics - Transformer, Inductor Components | Width | 11.00mm |
| Tolerance | -20%, +30% | Supplier Device Package | RM 8 |
| Series | B65811 | Other Names | 495-75898 B65811J R 97 B65811JR97 B65811JR97-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Minimum Core Cross Section (Amin) mm² | 55 |
| Material | N97 | Manufacturer Standard Lead Time | 24 Weeks |
| Length | 23.20mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Initial Permeability (µi) | 2300 | Inductance Factor (Al) | 3.3µH |
| Height | 8.25mm | Gap | Ungapped |
| Finish | Uncoated | Effective Permeability (µe) | 1560 |
| Effective Magnetic Volume (Ve) mm³ | 2430 | Effective Length (le) mm | 38 |
| Effective Area (Ae) mm² | 64 | Diameter | - |
| Core Type | RM | Core Factor (ΣI/A) mm1 | 0.59 |
- Related products
- Related news
Related products
- Part#:

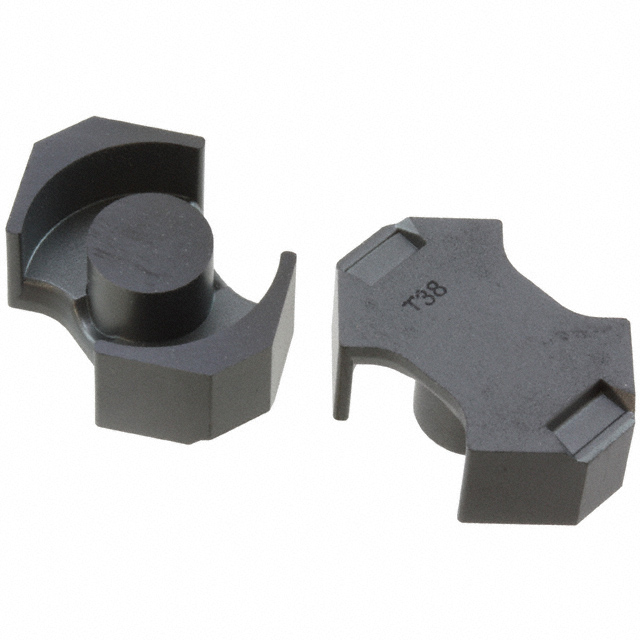

B65811J0000Y038 - Manufacturers:
