Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B65807N0315A048

B65807N0315A048

B65807N0315A048

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65807N0315A048 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B65807N0315A048
Manufacturer	EPCOS
Description	FERRITE CORE RM 315NH N48 2PCS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 74147 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.746	$0.644	$0.489	$0.464	$0.412
	$0.386	$0.361	$0.331	$0.322

Product parameter
Data sheet

Product parameter

Part Number	B65807N0315A048	Manufacturer	EPCOS
Description	FERRITE CORE RM 315NH N48 2PCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	74147 pcs	Data sheet	B65807,08,21, B65659
Category	Magnetics - Transformer, Inductor Components	Width	8.20mm
Tolerance	±3%	Supplier Device Package	RM 6
Series	B65807	Other Names	495-75211 B65807N 315A 48 B65807N315A48 B65807N315A48-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	N48
Manufacturer Standard Lead Time	24 Weeks	Length	17.90mm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Factor (Al)	315nH
Height	6.25mm	Gap	Gapped
Finish	Uncoated	Effective Permeability (µe)	215
Effective Magnetic Volume (Ve) mm³	840	Effective Length (le) mm	26.9
Effective Area (Ae) mm²	31.3	Diameter	-
Core Type	RM	Core Factor (ΣI/A) mm1	0.86

Related products
Related news

Related products

B65807N0160G048 Image

Part#:~~B65807N0160G048~~
Manufacturers:~~EPCOS~~
Description:~~FERRITE CORE RM N48 2PCS~~
In Stock:~~76737~~

~~$0.266/pcs~~RFQ

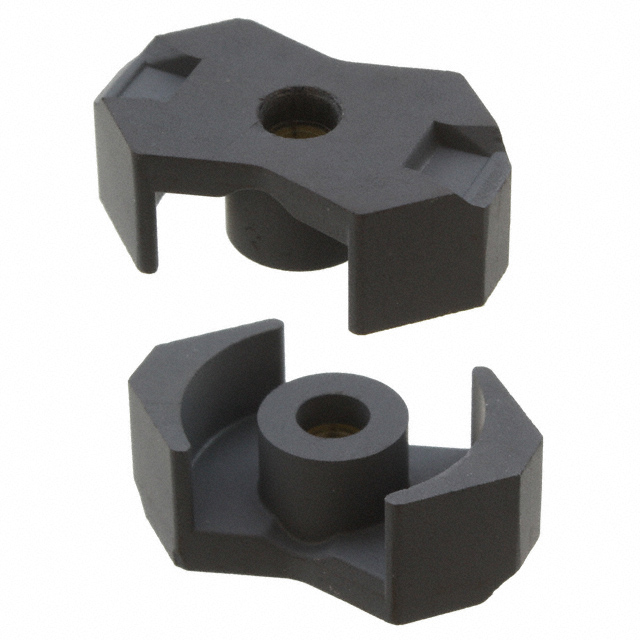

B65807N0040A001 Image
