Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B65803N0160A048

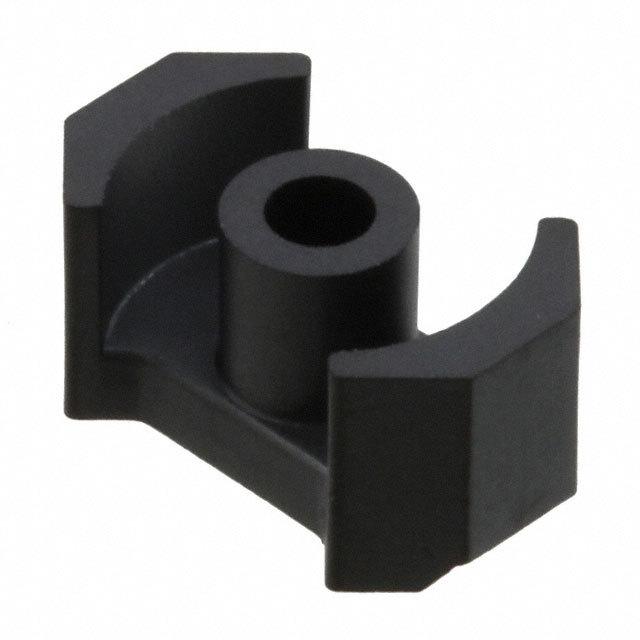

B65803N0160A048

B65803N0160A048

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65803N0160A048 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B65803N0160A048
Manufacturer	EPCOS
Description	FERRITE CORE RM 160NH N48 2PCS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 62203 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.838	$0.723	$0.549	$0.521	$0.463
	$0.434	$0.405	$0.372	$0.361

Product parameter
Data sheet

Product parameter

Part Number	B65803N0160A048	Manufacturer	EPCOS
Description	FERRITE CORE RM 160NH N48 2PCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	62203 pcs	Data sheet	B65803,04,06, B65539 Series Datasheet
Category	Magnetics - Transformer, Inductor Components	Width	4.60mm
Tolerance	±3%	Supplier Device Package	RM 4
Series	B65803	Other Names	495-5195 B65803N 160A 48 B65803N160A48 B65803N160A48-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	N48
Manufacturer Standard Lead Time	33 Weeks	Length	11.00mm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Factor (Al)	160nH
Height	5.25mm	Gap	Gapped
Finish	Uncoated	Effective Permeability (µe)	243
Effective Magnetic Volume (Ve) mm³	231	Effective Length (le) mm	21
Effective Area (Ae) mm²	11	Diameter	-
Core Type	RM	Core Factor (ΣI/A) mm1	1.9
