| Part Number | B65686A0315A027 |
|---|---|
| Manufacturer | EPCOS |

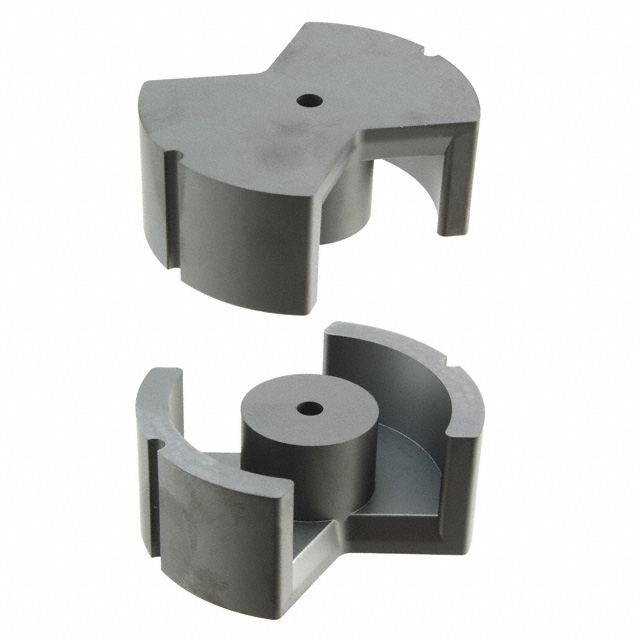

| Description | FERRITE CORE PM 315NH N27 2PCS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $20.025 | $17.80 | $14.685 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $14.24 | $12.46 | $11.57 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B65686A0315A027 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | FERRITE CORE PM 315NH N27 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3219 pcs | Data sheet | B65686, 687 Series Datsheet |
| Category | Magnetics - Transformer, Inductor Components | Width | - |
| Tolerance | ±3% | Supplier Device Package | PM 74 x 59 |
| Series | B65686 | Other Names | 495-5176 B65686A 315A 27 B65686A315A27 B65686A315A27-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Minimum Core Cross Section (Amin) mm² | 630 |
| Material | N27 | Manufacturer Standard Lead Time | 24 Weeks |
| Length | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Initial Permeability (µi) | 2000 | Inductance Factor (Al) | 315nH |
| Height | 29.50mm | Gap | Gapped |
| Finish | Uncoated | Effective Permeability (µe) | 41 |
| Effective Magnetic Volume (Ve) mm³ | 101000 | Effective Length (le) mm | 128 |
| Effective Area (Ae) mm² | 790 | Diameter | 74.00mm |
| Core Type | PM | Core Factor (ΣI/A) mm1 | 0.162 |
