B65646A0250A027

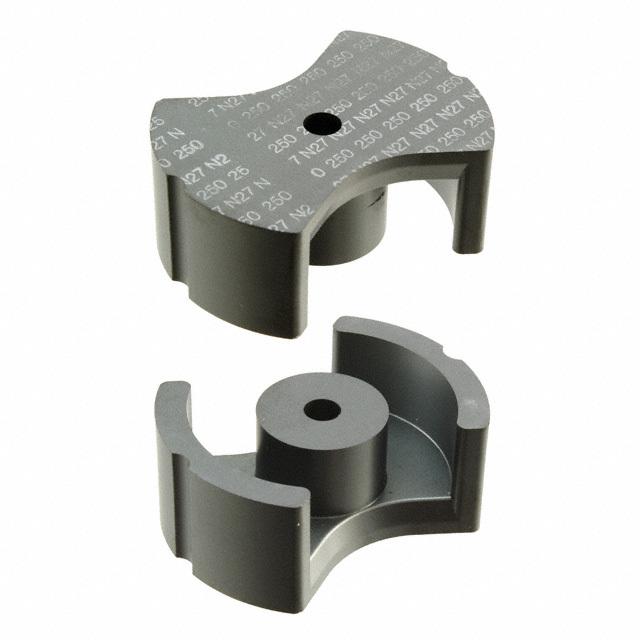

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65646A0250A027 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B65646A0250A027 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B65646A0250A027 |
|---|---|
| Manufacturer | EPCOS |
| Description | FERRITE CORE PM 250NH N27 2PCS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.433 | $5.789 | $4.374 | $4.245 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.731 | $3.422 | $3.267 | $3.216 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | B65646A0250A027 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | FERRITE CORE PM 250NH N27 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10378 pcs | Data sheet | B65646,47 Series |
| Category | Magnetics - Transformer, Inductor Components | Width | - |
| Tolerance | ±3% | Supplier Device Package | PM 50 x 39 |
| Series | B65646 | Other Names | 495-5141 B65646A 250A 27 B65646A250A27 B65646A250A27-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Minimum Core Cross Section (Amin) mm² | 280 |
| Material | N27 | Manufacturer Standard Lead Time | 24 Weeks |
| Length | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Initial Permeability (µi) | 2000 | Inductance Factor (Al) | 250nH |
| Height | 19.50mm | Gap | Gapped |
| Finish | Uncoated | Effective Permeability (µe) | 45 |
| Effective Magnetic Volume (Ve) mm³ | 31000 | Effective Length (le) mm | 84 |
| Effective Area (Ae) mm² | 370 | Diameter | 50.00mm |
| Core Type | PM | Core Factor (ΣI/A) mm1 | 0.227 |
