B65611W0000R030

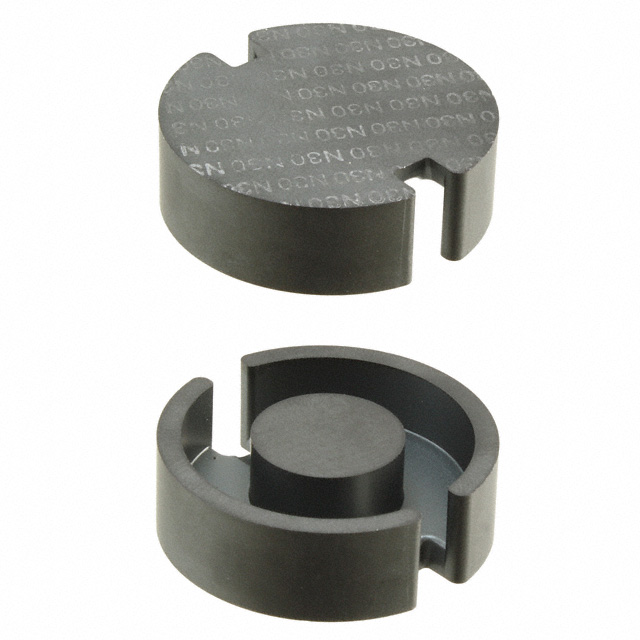

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65611W0000R030 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B65611W0000R030 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B65611W0000R030 |
|---|---|
| Manufacturer | EPCOS |
| Description | FERRITE CORE P 15.2UH N30 2PCS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.418 | $2.061 | $1.568 | $1.524 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.344 | $1.255 | $1.165 | $1.12 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | B65611W0000R030 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | FERRITE CORE P 15.2UH N30 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28792 pcs | Data sheet | B65611,12,15, B65679 Series |
| Category | Magnetics - Transformer, Inductor Components | Width | - |
| Tolerance | -20%, +30% | Supplier Device Package | P 36 x 22 |
| Series | B65611 | Other Names | 495-5138 B65611W R 30 B65611WR30 B65611WR30-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Minimum Core Cross Section (Amin) mm² | 173 |
| Material | N30 | Manufacturer Standard Lead Time | 24 Weeks |
| Length | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Initial Permeability (µi) | 4300 | Inductance Factor (Al) | 15.2µH |
| Height | 11.00mm | Gap | Ungapped |
| Finish | Uncoated | Effective Permeability (µe) | 3040 |
| Effective Magnetic Volume (Ve) mm³ | 11400 | Effective Length (le) mm | 53.5 |
| Effective Area (Ae) mm² | 213 | Diameter | 36.00mm |
| Core Type | P (Pot Core) | Core Factor (ΣI/A) mm1 | 0.25 |
