B65523J0000R097

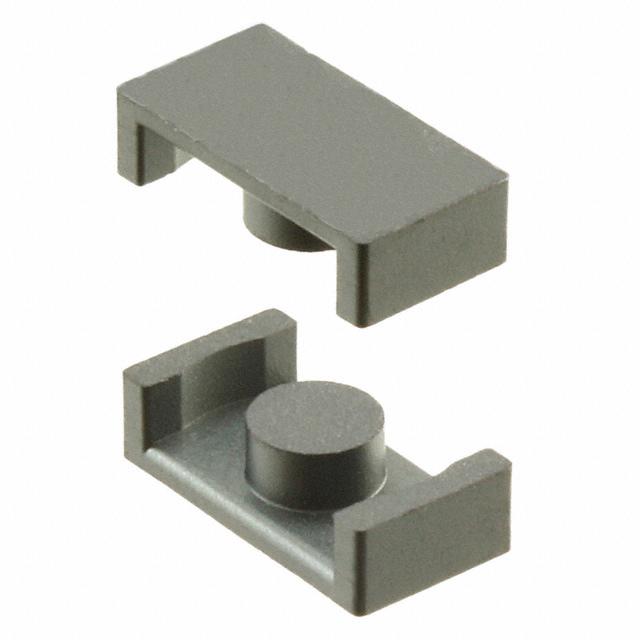

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65523J0000R097 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B65523J0000R097 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B65523J0000R097 |
|---|---|
| Manufacturer | EPCOS |
| Description | FERRITE CORE ER 840NH N97 2PCS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.283 | $0.256 | $0.189 | $0.18 | $0.161 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.151 | $0.142 | $0.123 | $0.118 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | B65523J0000R097 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | FERRITE CORE ER 840NH N97 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 171968 pcs | Data sheet | B65523,27 Series |
| Category | Magnetics - Transformer, Inductor Components | Width | 5.00mm |
| Tolerance | -20%, +30% | Supplier Device Package | ER 9.5 x 5 |
| Series | B65523 | Other Names | 495-75469 B65523J R 97 B65523JR97 B65523JR97-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material | N97 |
| Manufacturer Standard Lead Time | 24 Weeks | Length | 9.50mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Initial Permeability (µi) | 2300 |
| Inductance Factor (Al) | 840nH | Height | 2.50mm |
| Gap | Ungapped | Finish | Uncoated |
| Effective Permeability (µe) | 1032 | Effective Magnetic Volume (Ve) mm³ | 120 |
| Effective Length (le) mm | 13.6 | Effective Area (Ae) mm² | 8.81 |
| Diameter | - | Core Type | ER |
| Core Factor (ΣI/A) mm1 | 1.54 |
