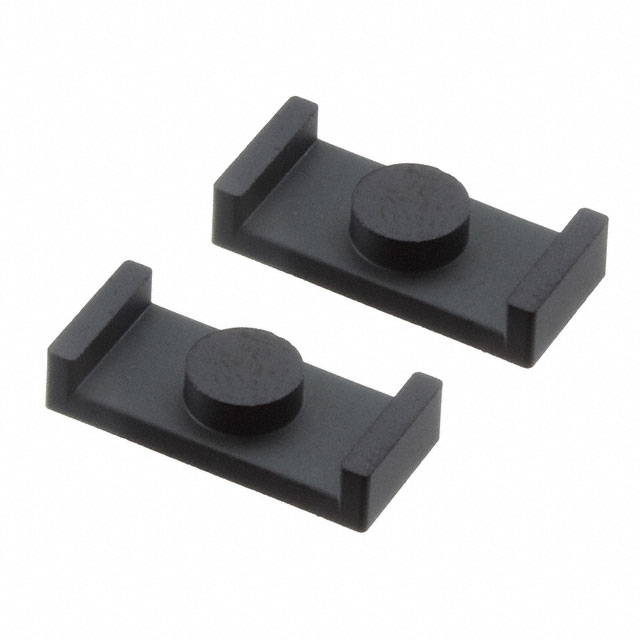

B65513J0000R097
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65513J0000R097 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B65513J0000R097 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B65513J0000R097 |
|---|---|
| Manufacturer | EPCOS |
| Description | FERRITE CORE ER 1.5UH N97 2PCS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.429 | $0.386 | $0.286 | $0.272 | $0.243 | |
| 250 pcs | 920 pcs | 1840 pcs | 5520 pcs | ||
| $0.229 | $0.215 | $0.186 | $0.179 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | B65513J0000R097 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | FERRITE CORE ER 1.5UH N97 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 110279 pcs | Data sheet | B65513 Series |
| Category | Magnetics - Transformer, Inductor Components | Width | 6.70mm |
| Tolerance | -20%, +30% | Supplier Device Package | ER 14.5 x 6 |
| Series | B65513 | Other Names | 495-75467 B65513J R 97 B65513JR97 B65513JR97-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material | N97 |
| Manufacturer Standard Lead Time | 24 Weeks | Length | 14.50mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Initial Permeability (µi) | 2300 |
| Inductance Factor (Al) | 1.5µH | Height | 2.95mm |
| Gap | Ungapped | Finish | Uncoated |
| Effective Permeability (µe) | 1290 | Effective Magnetic Volume (Ve) mm³ | 333 |
| Effective Length (le) mm | 19 | Effective Area (Ae) mm² | 17.6 |
| Diameter | - | Core Type | ER |
| Core Factor (ΣI/A) mm1 | 1.1 |
