Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B64290P0751X038

B64290P0751X038

B64290P0751X038

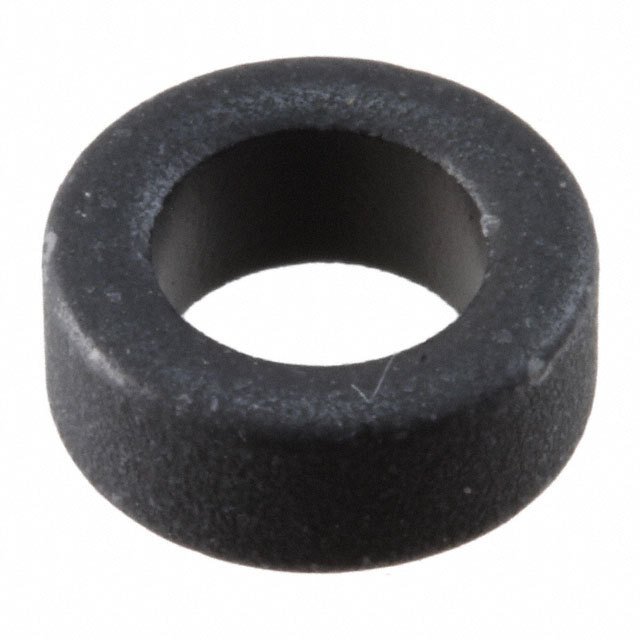

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B64290P0751X038 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B64290P0751X038
Manufacturer	EPCOS
Description	FERRITE CORE TOROID 5.5UH T38
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 271608 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.208	$0.172	$0.149	$0.134	$0.119
	$0.107	$0.098	$0.083	$0.077

Product parameter
Data sheet

Product parameter

Part Number	B64290P0751X038	Manufacturer	EPCOS
Description	FERRITE CORE TOROID 5.5UH T38	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	271608 pcs	Data sheet	B64290P0751 Datasheet Ferrites, Accessories General Info
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	±30%	Supplier Device Package	-
Series	B64290	Other Names	495-76791 B64290P 751X 38 B64290P0751X038-ND B64290P751X38 B64290P751X38-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	T38
Manufacturer Standard Lead Time	24 Weeks	Length	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Initial Permeability (µi)	10000
Inductance Factor (Al)	5.5µH	Height	4.02mm
Gap	Ungapped	Finish	Parylene
Effective Magnetic Volume (Ve) mm³	134	Effective Length (le) mm	17.42
Effective Area (Ae) mm²	7.7	Diameter	8.02mm
Core Type	Toroid	Core Factor (ΣI/A) mm1	2.26
