Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B64290P0037X830

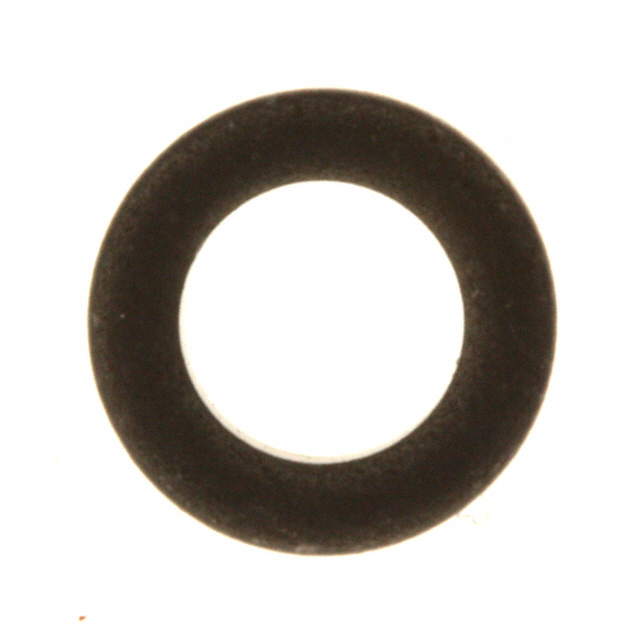

B64290P0037X830

B64290P0037X830

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B64290P0037X830 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B64290P0037X830
Manufacturer	EPCOS
Description	FERRITE CORE TOROID 1.09UH N30
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 361236 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.174	$0.14	$0.118	$0.104	$0.093
	$0.081	$0.073	$0.062	$0.058

Product parameter
Data sheet

Product parameter

Part Number	B64290P0037X830	Manufacturer	EPCOS
Description	FERRITE CORE TOROID 1.09UH N30	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	361236 pcs	Data sheet	B64290P0037 Datasheet Ferrites, Accessories General Info
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	±25%	Supplier Device Package	-
Series	B64290	Other Names	495-3874 B64290P 37X830 B64290P 37X830 B64290P37X830
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	N30
Manufacturer Standard Lead Time	42 Weeks	Length	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Initial Permeability (µi)	4300
Inductance Factor (Al)	1.09µH	Height	2.52mm
Gap	Ungapped	Finish	Parylene
Effective Magnetic Volume (Ve) mm³	46.5	Effective Length (le) mm	15.21
Effective Area (Ae) mm²	3.06	Diameter	6.32mm
Core Type	Toroid	Core Factor (ΣI/A) mm1	4.97
