Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B64290A0084X830

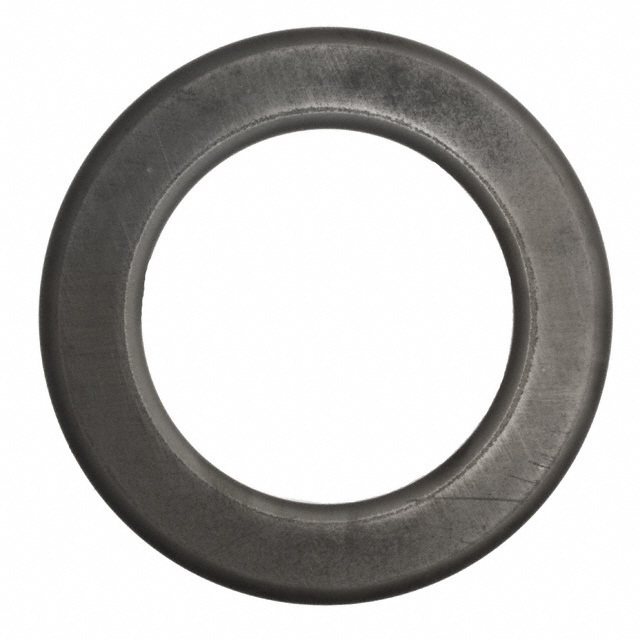

B64290A0084X830

B64290A0084X830

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B64290A0084X830 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B64290A0084X830
Manufacturer	EPCOS
Description	FERRITE CORE TOROID 5.5UH N30
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	108 pcs	252 pcs	504 pcs
~~In Stock~~ 4843 pcs
Reference Price (In US Dollars)	1 pcs	12 pcs	36 pcs	60 pcs
	$12.218	$10.933	$8.618	$8.361
	$7.332	$6.766	$6.483

Product parameter
Data sheet

Product parameter

Part Number	B64290A0084X830	Manufacturer	EPCOS
Description	FERRITE CORE TOROID 5.5UH N30	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4843 pcs	Data sheet	B64290A0084X830 Datasheet Ferrites, Accessories General Info
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	±25%	Supplier Device Package	R 102 x 65.8 x 15
Series	B64290	Other Names	495-3845 B64290A 84X830 B64290A 84X830 B64290A84X830
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	N30
Manufacturer Standard Lead Time	24 Weeks	Length	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Initial Permeability (µi)	4200
Inductance Factor (Al)	5.5µH	Height	15.00mm
Gap	Ungapped	Finish	Uncoated
Effective Magnetic Volume (Ve) mm³	68220	Effective Length (le) mm	255.3
Effective Area (Ae) mm²	267.2	Diameter	102.00mm
Core Type	Toroid	Core Factor (ΣI/A) mm1	0.96
