B62152A0001X001

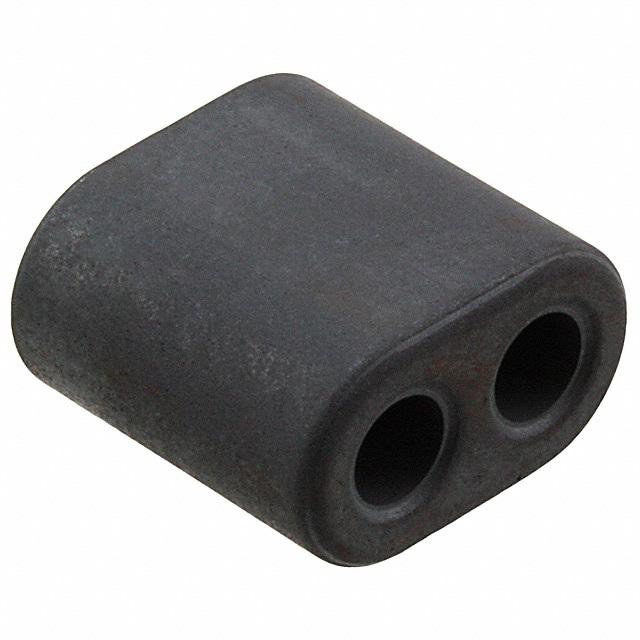

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B62152A0001X001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B62152A0001X001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B62152A0001X001 |
|---|---|
| Manufacturer | EPCOS |
| Description | FERRITE CORE 2 HOLE 330NH K1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.857 | $0.737 | $0.56 | $0.531 | $0.472 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.442 | $0.413 | $0.379 | $0.369 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | B62152A0001X001 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | FERRITE CORE 2 HOLE 330NH K1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 99696 pcs | Data sheet | B62152 Series Datasheet |
| Category | Magnetics - Transformer, Inductor Components | Width | 8.50mm |
| Tolerance | ±30% | Supplier Device Package | - |
| Series | B62152 | Other Names | 495-5810 B62152A 1X B62152A 1X 1 B62152A001X001 B62152A001X001-ND B62152A1X1 B62152A1X1T1 Q4080697 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material | K1 |
| Manufacturer Standard Lead Time | 26 Weeks | Length | 14.50mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Initial Permeability (µi) | 80 |
| Inductance Factor (Al) | 330nH | Height | 14.50mm |
| Gap | Ungapped | Finish | Uncoated |
| Effective Magnetic Volume (Ve) mm³ | 760 | Effective Length (le) mm | 15.3 |
| Effective Area (Ae) mm² | 49.7 | Diameter | - |
| Core Type | Multi-Hole (2) | Core Factor (ΣI/A) mm1 | 0.31 |
