Home > Products > Circuit Protection > PTC Resettable Fuses > B59970C0130A070

B59970C0130A070

B59970C0130A070

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B59970C0130A070 with confidence from Components-World.HK, 1 Year Warranty

Dowload B59970C0130A070 Details in PDF

Request a Quote

Part Number	B59970C0130A070
Manufacturer	EPCOS
Description	PTC RESET FUSE 80V 150MA RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 142960 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs	100 pcs
	$0.344	$0.332	$0.311	$0.257	$0.214
	$0.209	$0.177	$0.155	$0.139

Product parameter
Data sheet

Product parameter

Part Number	B59970C0130A070	Manufacturer	EPCOS
Description	PTC RESET FUSE 80V 150MA RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	142960 pcs	Data sheet	B599x0 Series Datasheet, 63V Taping and Packing Numbering
Category	Circuit Protection	Voltage - Max	80V
Type	Ceramic	Thickness (Max)	-
Size / Dimension	0.256" Dia x 0.138" T (6.50mm x 3.50mm)	Series	-
Resistance - 25°C (Typ)	20 Ohms	Ratings	-
Packaging	Bulk	Package / Case	Radial, Disc
Other Names	495-76403 B59970C 130A 70 B59970C0130A070-ND B59970C130A70 B59970C130A70-ND	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	18 Weeks	Lead Spacing	0.197" (5.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.394" (10.00mm)
Detailed Description	Ceramic PTC Resettable Fuse 80V 150mA Ih Through Hole Radial, Disc	Current - Trip (It)	240mA
Current - Max	1A	Current - Hold (Ih) (Max)	150mA
Approvals	UR, VDE

Related products
Related news

Related products

B59975C0120A054 Image

Part#:~~B59975C0120A054~~
Manufacturers:~~EPCOS~~
Description:~~PTC RESET FUSE 30V 450MA RADIAL~~
In Stock:~~5527~~

B59970C0120A070 Image

Part#:~~B59970C0120A070~~
Manufacturers:~~EPCOS~~
Description:~~PTC RESET FUSE 80V 150MA RADIAL~~
In Stock:~~106133~~

~~$0.22/pcs~~RFQ

B59965C120A51 Image

Part#:~~B59965C120A51~~
Manufacturers:~~EPCOS~~
Description:~~PTC RESET FUSE 30V 600MA RADIAL~~
In Stock:~~5417~~

B59970C120A54 Image

Part#:~~B59970C120A54~~
Manufacturers:~~EPCOS~~
Description:~~PTC RESET FUSE 80V 150MA RADIAL~~
In Stock:~~5178~~

B59975C0120A053 Image

Part#:~~B59975C0120A053~~
Manufacturers:~~EPCOS~~
Description:~~PTC RESET FUSE 30V 450MA RADIAL~~
In Stock:~~4604~~

Part#:~~B59965C160A51~~
Manufacturers:~~EPCOS~~
Description:~~THERMISTOR PTC~~
In Stock:~~72386~~

~~$0.297/pcs~~RFQ

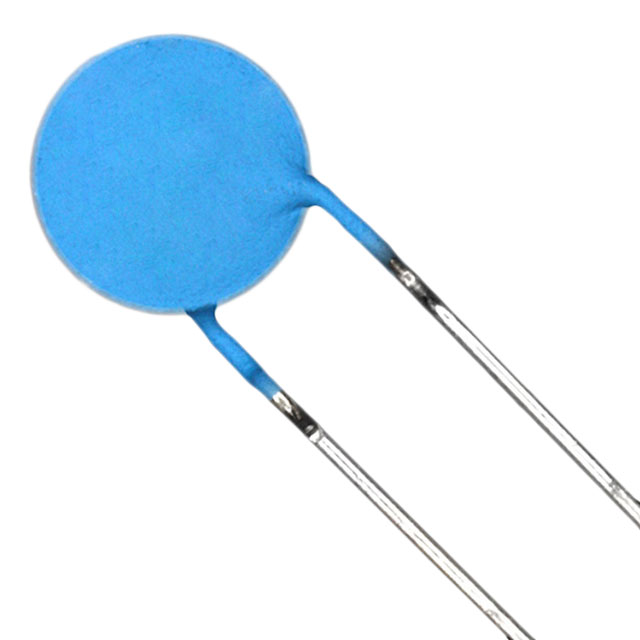

B59970C0080A070 Image
