Home > Products > Circuit Protection > PTC Resettable Fuses > B59960C0120A070

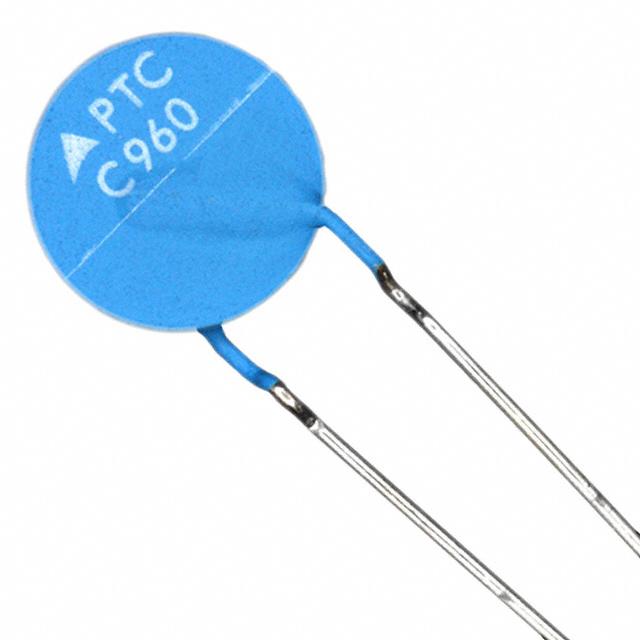

B59960C0120A070

B59960C0120A070

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B59960C0120A070 with confidence from Components-World.HK, 1 Year Warranty

Dowload B59960C0120A070 Details in PDF

Request a Quote

Part Number	B59960C0120A070
Manufacturer	EPCOS
Description	PTC RESET FUSE 80V 250MA RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 97493 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs	100 pcs
	$0.546	$0.531	$0.497	$0.411	$0.342
	$0.334	$0.283	$0.248	$0.223

Product parameter
Data sheet

Product parameter

Part Number	B59960C0120A070	Manufacturer	EPCOS
Description	PTC RESET FUSE 80V 250MA RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	97493 pcs	Data sheet	B599x0 Series Datasheet, 63V Taping and Packing Numbering
Category	Circuit Protection	Voltage - Max	80V
Type	Ceramic	Thickness (Max)	-
Size / Dimension	0.433" Dia x 0.138" T (11.00mm x 3.50mm)	Series	-
Resistance - 25°C (Typ)	5.6 Ohms	Ratings	-
Packaging	Bulk	Package / Case	Radial, Disc
Other Names	495-3898 B59960C 120A 70 B59960C0120A070-ND B59960C120A70 B59960C120A70-ND	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	18 Weeks	Lead Spacing	0.197" (5.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.571" (14.50mm)
Detailed Description	Ceramic PTC Resettable Fuse 80V 250mA Ih Through Hole Radial, Disc	Current - Trip (It)	500mA
Current - Max	4.3A	Current - Hold (Ih) (Max)	250mA
Approvals	UR
