Home > Products > Circuit Protection > PTC Resettable Fuses > B59945C0160A070

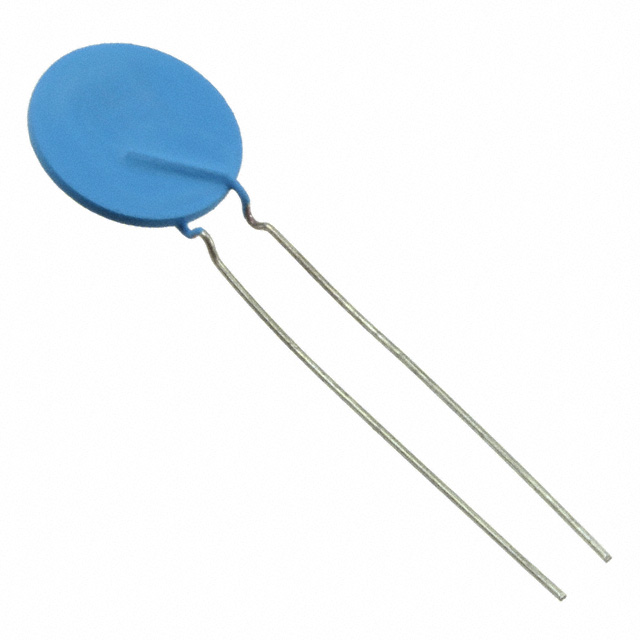

B59945C0160A070

B59945C0160A070

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B59945C0160A070 with confidence from Components-World.HK, 1 Year Warranty

Dowload B59945C0160A070 Details in PDF

Request a Quote

Part Number	B59945C0160A070
Manufacturer	EPCOS
Description	PTC RESET FUSE 20V 1.5A RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 79032 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs	100 pcs
	$0.713	$0.68	$0.646	$0.521	$0.442
	$0.431	$0.363	$0.323	$0.283

Product parameter
Data sheet

Product parameter

Part Number	B59945C0160A070	Manufacturer	EPCOS
Description	PTC RESET FUSE 20V 1.5A RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	79032 pcs	Data sheet	B599x5 Series Datasheet, 12V
Category	Circuit Protection	Voltage - Max	20V
Type	Ceramic	Thickness (Max)	-
Size / Dimension	0.689" Dia x 0.138" T (17.50mm x 3.50mm)	Series	-
Resistance - 25°C (Typ)	450 mOhms	Ratings	AEC-Q200
Packaging	Bulk	Package / Case	Radial, Disc
Other Names	495-76396 B59945C 160A 70 B59945C0160A070-ND B59945C160A70 B59945C160A70-ND	Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	18 Weeks	Lead Spacing	0.197" (5.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.827" (21.00mm)
Detailed Description	Ceramic PTC Resettable Fuse 20V 1.5A Ih Through Hole Radial, Disc	Current - Trip (It)	3.05A
Current - Max	8A	Current - Hold (Ih) (Max)	1.5A
Approvals	UR
