Home > Products > Capacitors > Aluminum Electrolytic Capacitors > B41505A7688M

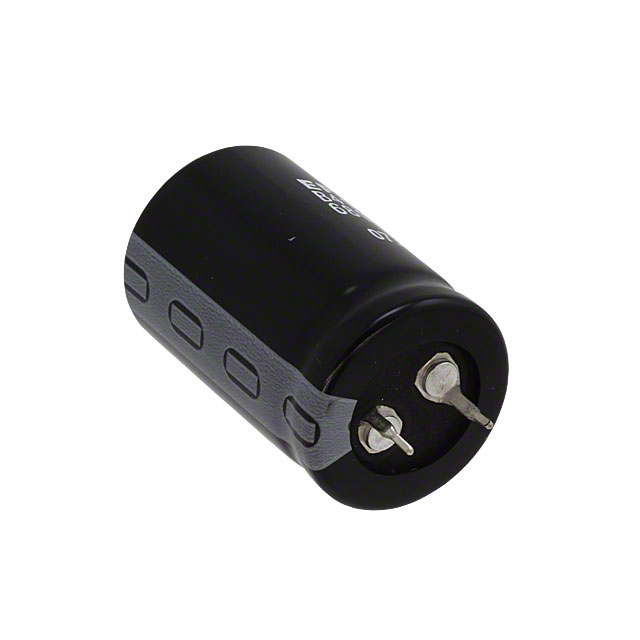

B41505A7688M

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B41505A7688M with confidence from Components-World.HK, 1 Year Warranty

Dowload B41505A7688M Details in PDF

Request a Quote

Part Number	B41505A7688M
Manufacturer	EPCOS (TDK)
Description	CAP ALUM 6800UF 20% 35V SNAP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	1000 pcs	5000 pcs	10000 pcs
~~In Stock~~ 39375 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs
	$1.525	$1.372	$1.037	$0.854
	$0.793	$0.762	$0.756

Product parameter
Data sheet

Product parameter

Part Number	B41505A7688M	Manufacturer	EPCOS (TDK)
Description	CAP ALUM 6800UF 20% 35V SNAP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	39375 pcs	Data sheet	B41505 Series
Category	Capacitors	Tolerance	6800µF
Surface Mount Land Size	0.394" (10.00mm)	Size / Dimension	0.984" Dia (25.00mm)
Series	B41505	RoHS Status	Bulk
Ripple Current - Low Frequency	General Purpose	Ripple Current	Polar
Polarization	Radial, Can - Snap-In	Pitch - Connector	35V
Package / Case	-	Other Names	495-6186 B41505A7688M-ND B41505A7688M000
Operating Temperature	-40°C ~ 105°C	Number of Capacitors	2.3A @ 100Hz
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	19 Weeks	Manufacturer Part Number	B41505A7688M
Lifetime @ Temp.	35 mOhm @ 100Hz	Impedance	37 mOhm
Height - Seated (Max)	1.654" (42.00mm)	Expanded Description	6800µF 35V Aluminum Capacitors Radial, Can - Snap-In 35 mOhm @ 100Hz 5000 Hrs @ 105°C
ESR (Equivalent Series Resistance)	±20%	Description	CAP ALUM 6800UF 20% 35V SNAP
Applications	5000 Hrs @ 105°C
