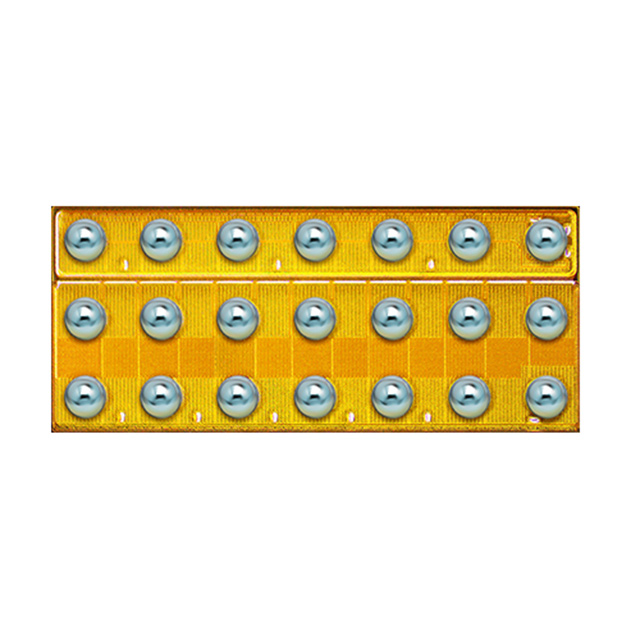

EPC2111
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EPC2111 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EPC2111 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EPC2111 |
|---|---|
| Manufacturer | EPC |
| Description | TRANS GAN ASYMMETRICAL HALF BRID |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.324 | $1.181 | $1.063 | $0.969 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.874 | $0.784 | $0.662 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EPC2111 | Manufacturer | EPC |
|---|---|---|---|
| Description | TRANS GAN ASYMMETRICAL HALF BRID | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45565 pcs | Data sheet | EPC2111 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 5mA |
| Supplier Device Package | Die | Series | - |
| Rds On (Max) @ Id, Vgs | 19 mOhm @ 15A, 5V, 8 mOhm @ 15A, 5V | Power - Max | - |
| Packaging | Original-Reel® | Package / Case | Die |
| Other Names | 917-1174-6 | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 230pF @ 15V, 590pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 2.2nC @ 5V, 5.7nC @ 5V |
| FET Type | 2 N-Channel (Half Bridge) | FET Feature | GaNFET (Gallium Nitride) |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | Mosfet Array 2 N-Channel (Half Bridge) 30V 16A (Ta) Surface Mount Die |
| Current - Continuous Drain (Id) @ 25°C | 16A (Ta) |
