638-015-230-047

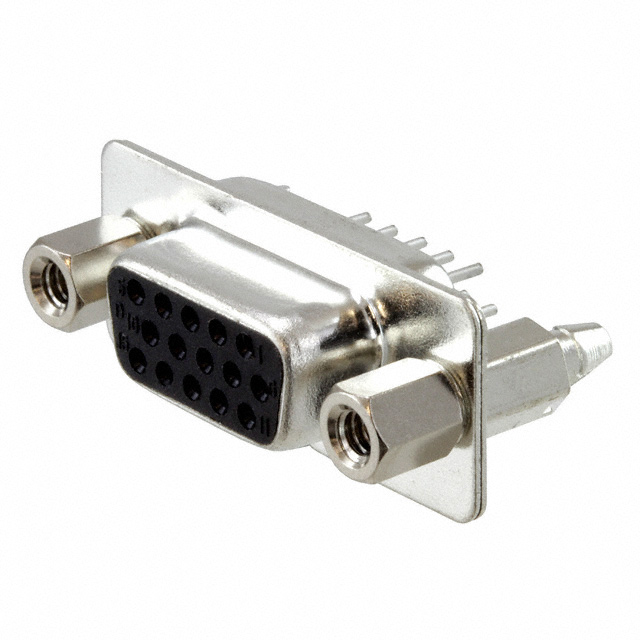

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 638-015-230-047 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 638-015-230-047 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 638-015-230-047 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | CONN D-SUB HD RCPT 15POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.665 | $1.599 | $1.465 | $1.399 | $1.332 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.166 | $1.132 | $0.966 | $0.899 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 638-015-230-047 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | CONN D-SUB HD RCPT 15POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37364 pcs | Data sheet | 638-0xx-x30-04x DrawingInterconnect Solutions Brochure637, 638 Series Datasheet |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | 638 | Packaging | Tray |
| Other Names | 151-1204 638-015-230-047-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyester Thermoplastic | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock, Shielded | Detailed Description | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Brass | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | - |
