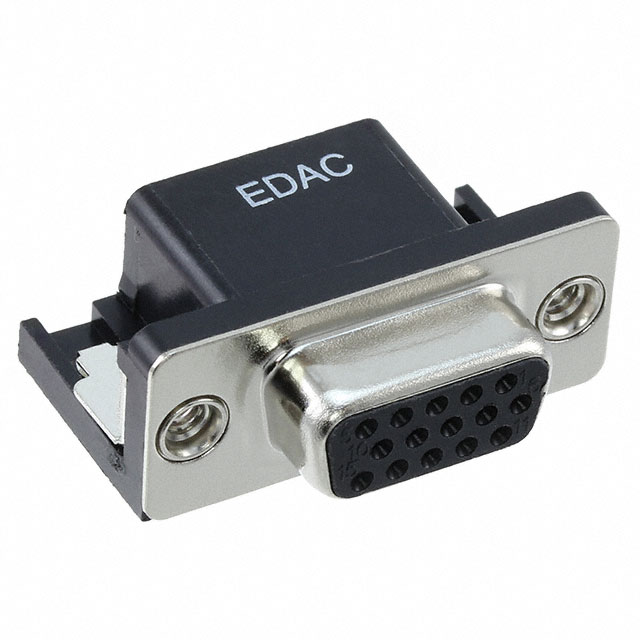

634-015-663-042
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 634-015-663-042 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 634-015-663-042 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 634-015-663-042 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | CONN DSUB HD RCPT 15POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.187 | $2.099 | $1.924 | $1.837 | $1.749 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.531 | $1.487 | $1.268 | $1.181 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 634-015-663-042 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | CONN DSUB HD RCPT 15POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28425 pcs | Data sheet | 633, 634 Series DatasheetInterconnect Solutions Brochure |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | 634 | Packaging | Tray |
| Other Names | 151-1495 634-015-663-042-ND |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyester Thermoplastic | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock, Shielded | Detailed Description | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | 0.350" (8.89mm) |
