628-015-321-056

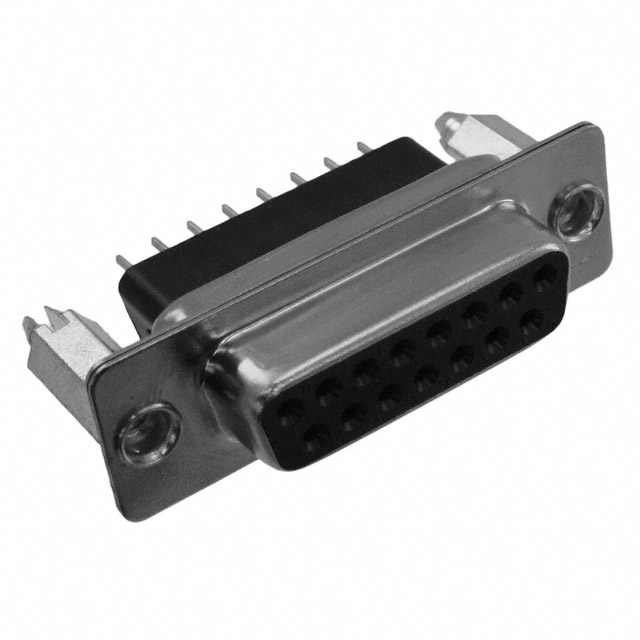

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 628-015-321-056 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 628-015-321-056 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 628-015-321-056 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | CONN D-SUB RCPT 15P PNL MNT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.188 | $2.10 | $1.925 | $1.838 | $1.75 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.532 | $1.488 | $1.269 | $1.181 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 628-015-321-056 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | CONN D-SUB RCPT 15P PNL MNT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26280 pcs | Data sheet | Interconnect Solutions Brochure627,628 Series Datasheet |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Nickel Plated |
| Series | 628 | Packaging | Tray |
| Other Names | 6.28015E+11 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyester Thermoplastic | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock, Shielded | Detailed Description | 15 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 15.0µin (0.38µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
