628-009-321-056

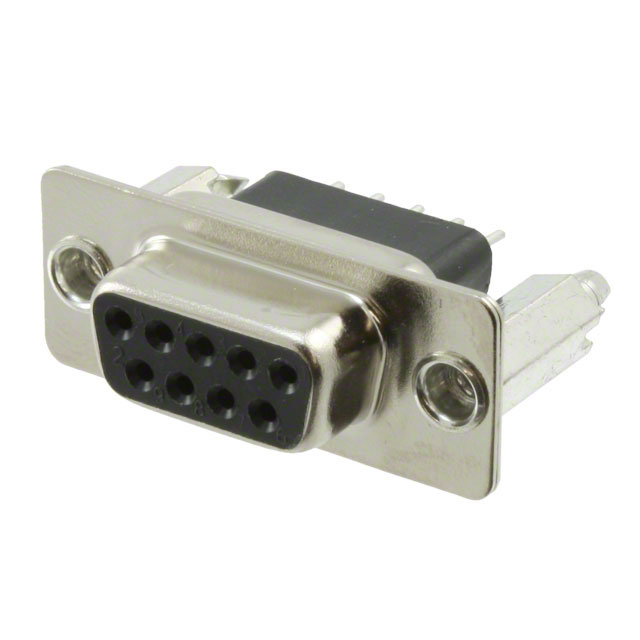

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 628-009-321-056 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 628-009-321-056 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 628-009-321-056 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | CONN DSUB RCPT 9POS PNL MNT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.813 | $1.741 | $1.596 | $1.523 | $1.451 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.269 | $1.233 | $1.052 | $0.979 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 628-009-321-056 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | CONN DSUB RCPT 9POS PNL MNT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40356 pcs | Data sheet | Interconnect Solutions Brochure627,628 Series Datasheet |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Nickel Plated |
| Series | 628 | Packaging | Tray |
| Other Names | 6.28009E+11 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyester Thermoplastic | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock, Shielded | Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 15.0µin (0.38µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
