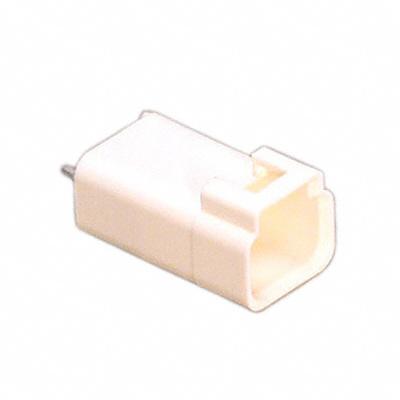

570-002-420-101
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 570-002-420-101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 570-002-420-101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 570-002-420-101 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | CONN PLUG 2POS WATERPROOF PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 570-002-420-101 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | CONN PLUG 2POS WATERPROOF PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4102 pcs | Data sheet | Interconnect Solutions BrochureWater-Proof Catalog570 SeriesWater-Proof Brochure |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 570 |
| Row Spacing - Mating | - | Pitch - Mating | 0.228" (5.80mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 151-1019 570002420101 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.768" (19.50mm) |
| Insulation Color | - | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 2 position 0.228" (5.80mm) | Current Rating | 10A |
| Contact Type | Male Pin | Contact Shape | - |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Tin | Connector Type | Plug |
| Applications | Automotive, General Purpose |
