560-005-420-101

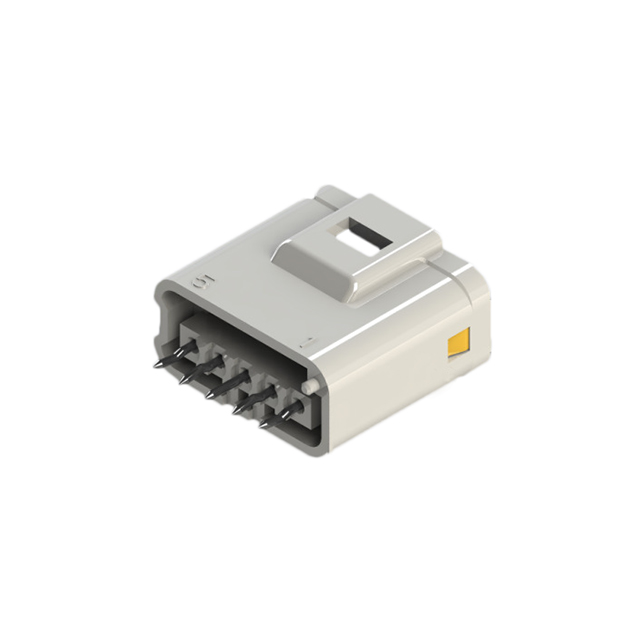

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 560-005-420-101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 560-005-420-101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 560-005-420-101 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | BOARD MTG 5 PIN PLUG (WHITE) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.774 | $0.702 | $0.659 | $0.63 | $0.602 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.544 | $0.501 | $0.43 | $0.401 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 560-005-420-101 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | BOARD MTG 5 PIN PLUG (WHITE) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84946 pcs | Data sheet | 560 Series Datasheet560-005-420-101 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 560 |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 151-1552 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.610" (15.49mm) | Insulation Color | White |
| Ingress Protection | IP67 | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 5 position 0.098" (2.50mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose |
