Home > Products > Connectors, Interconnects > Card Edge Connectors - Edgeboard Connectors > 396-044-520-201

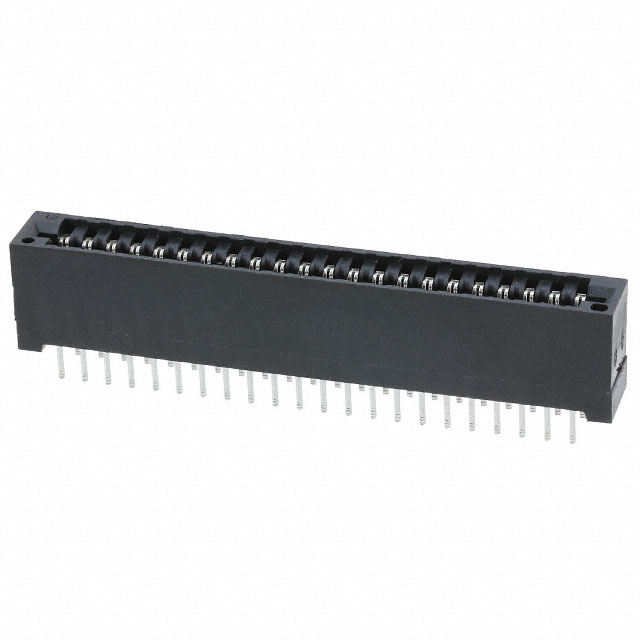

396-044-520-201

396-044-520-201

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 396-044-520-201 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	396-044-520-201
Manufacturer	EDAC Inc.
Description	CONN EDGE DUAL FMALE 44POS 0.125
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 17135 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.61	$3.455	$3.141	$2.983
	$2.905	$2.591	$2.434	$2.151

Product parameter
Data sheet

Product parameter

Part Number	396-044-520-201	Manufacturer	EDAC Inc.
Description	CONN EDGE DUAL FMALE 44POS 0.125	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17135 pcs	Data sheet	346, 396 Series Datasheet cardEdge Connector Brochure
Category	Connectors, Interconnects	Termination	Solder
Series	396	Read Out	Dual
Pitch	0.125" (3.18mm)	Packaging	Bulk
Other Names	151-1435 396-044-520-201-ND	Operating Temperature	-65°C ~ 125°C
Number of Rows	2	Number of Positions/Bay/Row	22
Number of Positions	44	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	Polyester Thermoplastic
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Gender	Female	Flange Feature	-
Features	-	Contact Type	-
Contact Material	Copper, Nickel, Tin Alloy	Contact Finish Thickness	-
Contact Finish	Gold	Color	Black
Card Type	Non Specified - Dual Edge	Card Thickness	0.062" (1.57mm)
