Home > Products > Connectors, Interconnects > Card Edge Connectors - Edgeboard Connectors > 341-100-520-201

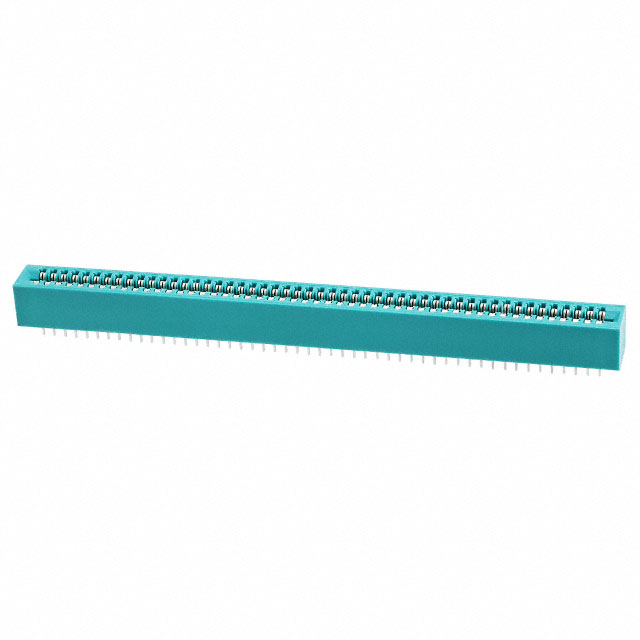

341-100-520-201

341-100-520-201

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 341-100-520-201 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	341-100-520-201
Manufacturer	EDAC Inc.
Description	CONN EDGE DUAL FMALE 100POS .100
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 6664 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$7.181	$6.481	$6.21	$5.821
	$5.627	$5.317	$5.162

Product parameter
Data sheet

Product parameter

Part Number	341-100-520-201	Manufacturer	EDAC Inc.
Description	CONN EDGE DUAL FMALE 100POS .100	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6664 pcs	Data sheet	Interconnect Solutions Brochure 341, 391 Series Datasheet cardEdge Connector Brochure
Category	Connectors, Interconnects	Termination	Solder
Series	341	Read Out	Dual
Pitch	0.100" (2.54mm)	Packaging	Bulk
Other Names	151-1367 341-100-520-201-ND	Operating Temperature	-65°C ~ 125°C
Number of Rows	2	Number of Positions/Bay/Row	50
Number of Positions	100	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	Polyester Thermoplastic
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Gender	Female	Flange Feature	-
Features	-	Contact Type	-
Contact Material	Copper, Nickel, Tin Alloy	Contact Finish Thickness	-
Contact Finish	Gold	Color	Green
Card Type	Non Specified - Dual Edge	Card Thickness	0.062" (1.57mm)
