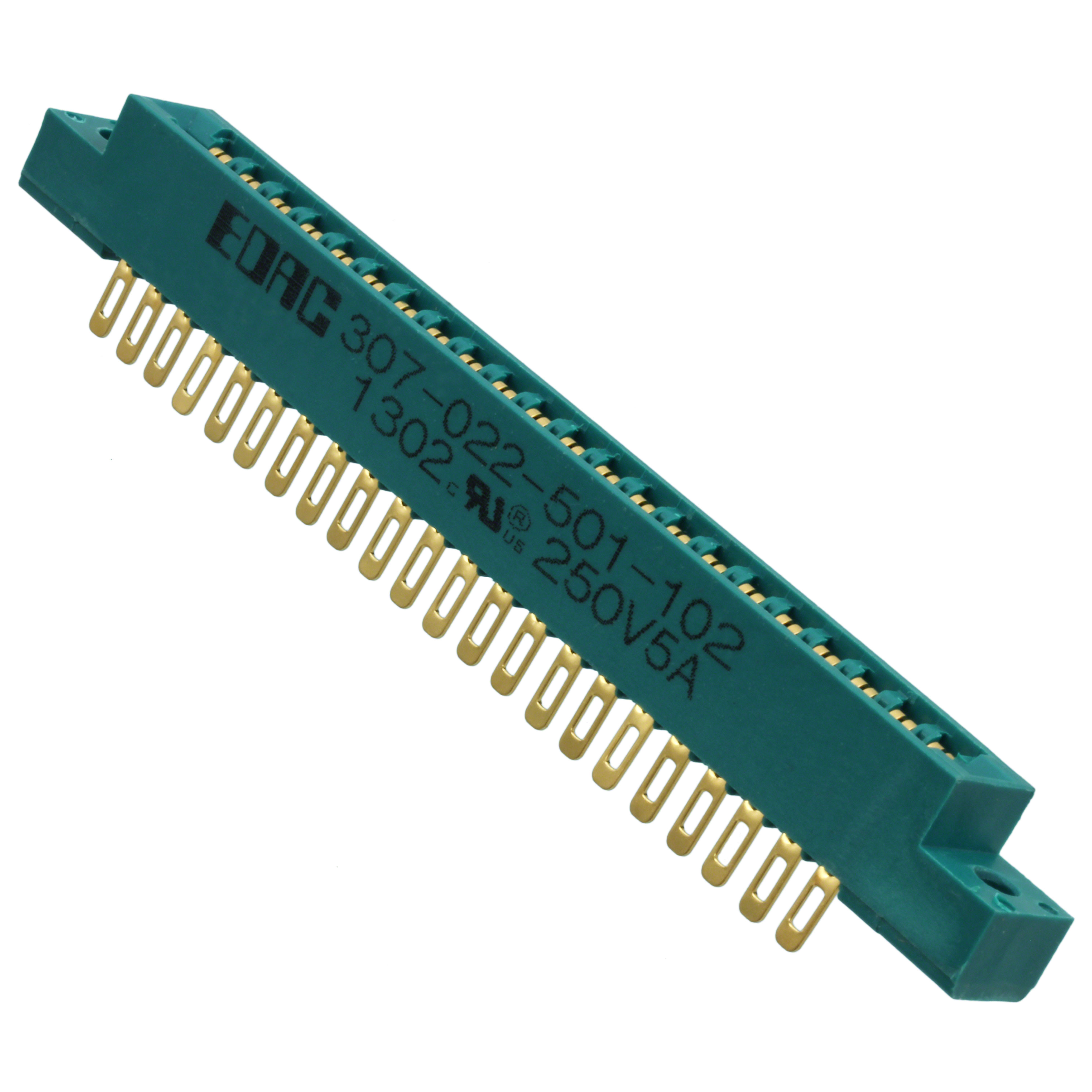

307-022-501-102
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 307-022-501-102 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 307-022-501-102 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 307-022-501-102 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | CONN EDGE DUAL FMALE 44POS 0.156 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $9.344 | $8.436 | $8.082 | $7.577 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $7.325 | $6.921 | $6.718 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 307-022-501-102 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 44POS 0.156 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5795 pcs | Data sheet | 307, 357 Series DatasheetInterconnect Solutions BrochurecardEdge Connector Brochure |
| Category | Connectors, Interconnects | Termination | Solder Eyelet(s) |
| Series | 307 | Read Out | Single |
| Pitch | 0.156" (3.96mm) | Packaging | Bulk |
| Other Names | 151-1349 307-022-501-102-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 22 |
| Number of Positions | 44 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyester Thermoplastic |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia |
| Features | - | Contact Type | - |
| Contact Material | Copper, Nickel, Tin Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Color | Green |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.062" (1.57mm) |
