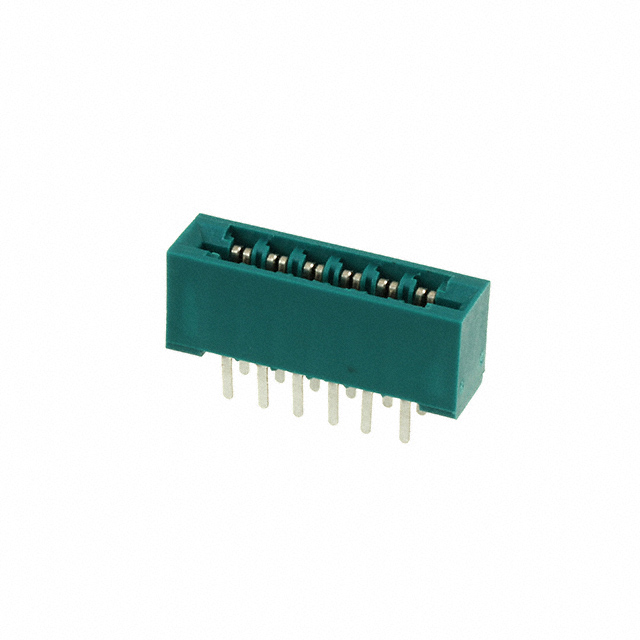

307-012-520-201
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 307-012-520-201 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 307-012-520-201 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 307-012-520-201 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | CONN EDGE DUAL FMALE 12POS 0.156 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.211 | $2.117 | $1.933 | $1.841 | $1.749 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.565 | $1.473 | $1.289 | $1.224 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 307-012-520-201 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 12POS 0.156 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24630 pcs | Data sheet | 307, 357 Series DatasheetInterconnect Solutions BrochurecardEdge Connector Brochure |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | 307 | Read Out | Dual |
| Pitch | 0.156" (3.96mm) | Packaging | Bulk |
| Other Names | 151-1342 307-012-520-201-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 6 |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyester Thermoplastic |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | - | Contact Type | - |
| Contact Material | Copper, Nickel, Tin Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Color | Green |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.062" (1.57mm) |
