306-006-500-102

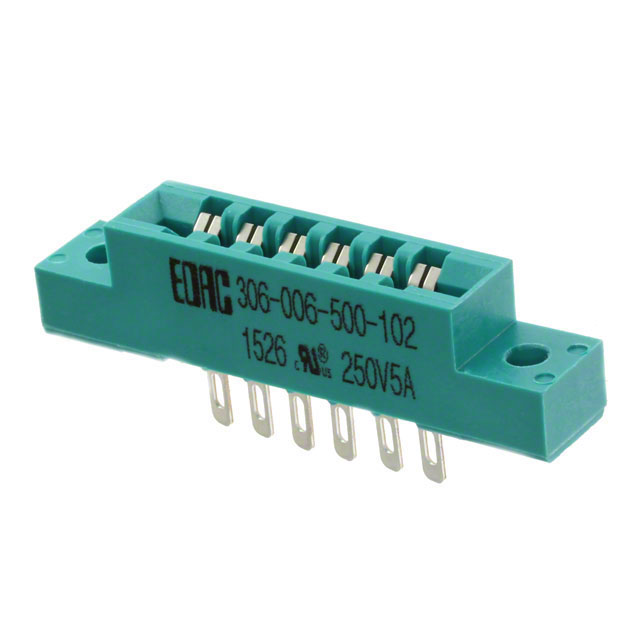

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 306-006-500-102 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 306-006-500-102 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 306-006-500-102 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | CONN EDGE DUAL FMALE 12POS 0.156 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.736 | $2.621 | $2.393 | $2.279 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.165 | $1.937 | $1.823 | $1.595 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 306-006-500-102 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 12POS 0.156 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18800 pcs | Data sheet | 306, 316, 356 Series DatasheetInterconnect Solutions BrochurecardEdge Connector Brochure |
| Category | Connectors, Interconnects | Termination | Solder Eyelet(s) |
| Series | 306 | Read Out | Single |
| Pitch | 0.156" (3.96mm) | Packaging | Bulk |
| Other Names | 151-1523 306-006-500-102-ND |
Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 6 |
| Number of Positions | 12 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyester Thermoplastic |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia |
| Features | - | Contact Type | - |
| Contact Material | Copper, Nickel, Tin Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Color | Green |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.062" (1.57mm) |
