Home > Products > Connectors, Interconnects > Card Edge Connectors - Edgeboard Connectors > 305-086-520-201

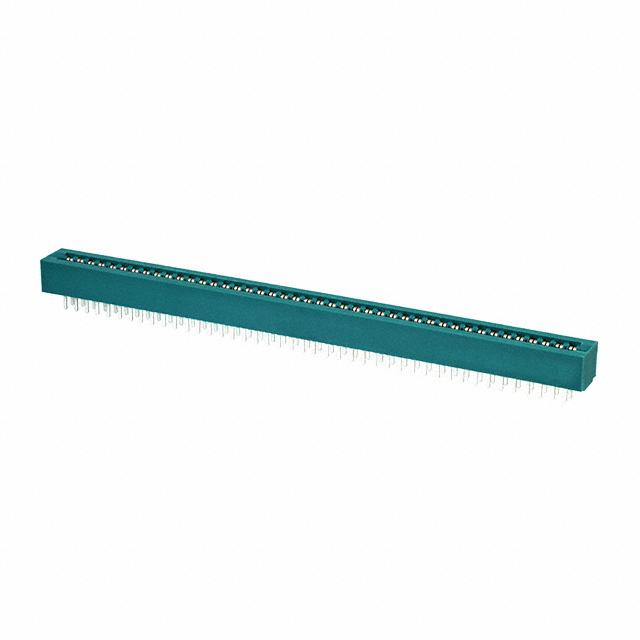

305-086-520-201

305-086-520-201

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 305-086-520-201 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	305-086-520-201
Manufacturer	EDAC Inc.
Description	CONN EDGE DUAL FMALE 86POS 0.156
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 8854 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$5.886	$5.466	$4.905	$4.765
	$4.204	$3.924	$3.84

Product parameter
Data sheet

Product parameter

Part Number	305-086-520-201	Manufacturer	EDAC Inc.
Description	CONN EDGE DUAL FMALE 86POS 0.156	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8854 pcs	Data sheet	305, 315, 355 Series Datasheet Interconnect Solutions Brochure cardEdge Connector Brochure
Category	Connectors, Interconnects	Termination	Solder
Series	305	Read Out	Dual
Pitch	0.156" (3.96mm)	Packaging	Bulk
Other Names	151-1324 305-086-520-201-ND	Operating Temperature	-65°C ~ 125°C
Number of Rows	2	Number of Positions/Bay/Row	43
Number of Positions	86	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	Polyester Thermoplastic
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Gender	Female	Flange Feature	-
Features	-	Contact Type	-
Contact Material	Copper, Nickel, Tin Alloy	Contact Finish Thickness	-
Contact Finish	Gold	Color	Green
Card Type	Non Specified - Dual Edge	Card Thickness	0.062" (1.57mm)
