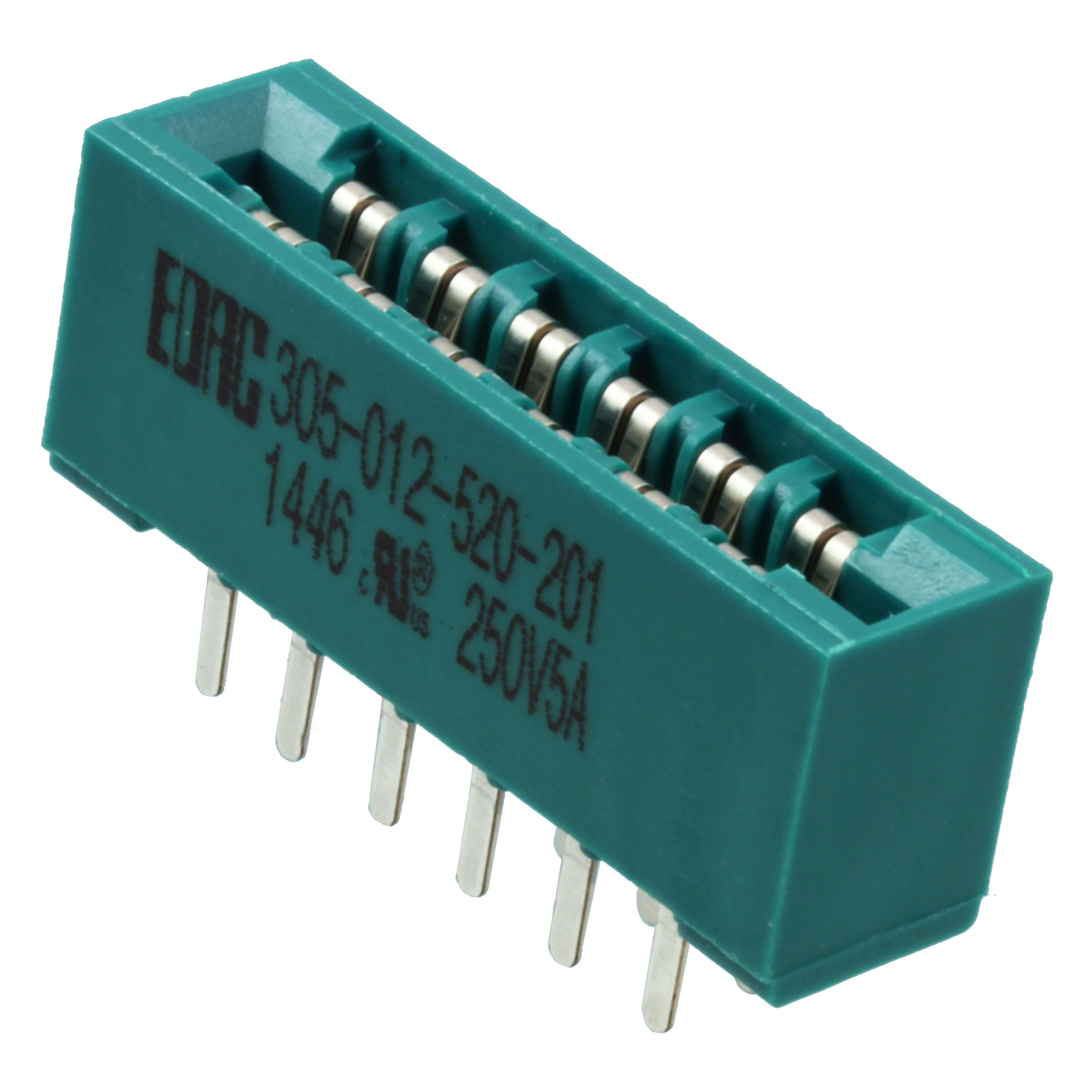

305-012-520-201
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 305-012-520-201 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 305-012-520-201 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 305-012-520-201 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | CONN EDGE DUAL FMALE 12POS 0.156 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.598 | $2.492 | $2.275 | $2.167 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.058 | $1.842 | $1.733 | $1.517 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 305-012-520-201 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 12POS 0.156 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20422 pcs | Data sheet | 305, 315, 355 Series DatasheetInterconnect Solutions BrochurecardEdge Connector Brochure |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | 305 | Read Out | Dual |
| Pitch | 0.156" (3.96mm) | Packaging | Bulk |
| Other Names | 151-1320 305-012-520-201-ND |
Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 6 |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Material - Insulation | Polyester Thermoplastic | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Gender | Female |
| Flange Feature | - | Features | - |
| Contact Type | - | Contact Material | Copper, Nickel, Tin Alloy |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Color | Green | Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.062" (1.57mm) |
