ECS-92.1-20-4

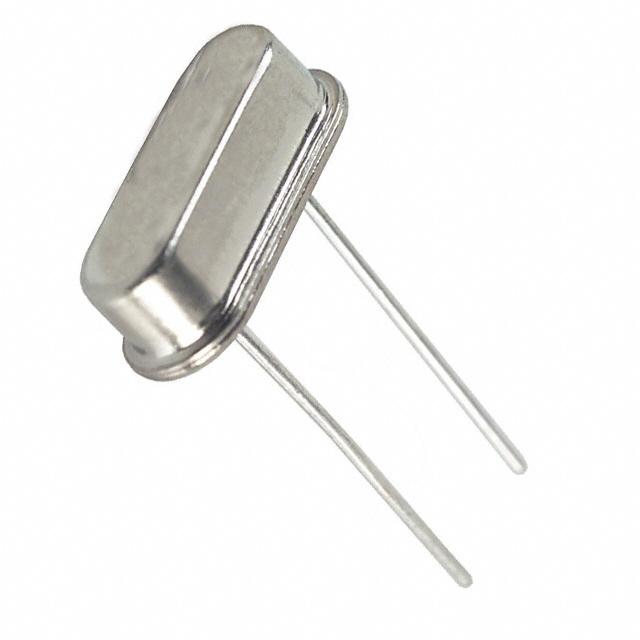

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECS-92.1-20-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ECS-92.1-20-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECS-92.1-20-4 |
|---|---|
| Manufacturer | ECS Inc. International |
| Description | CRYSTAL 9.2160MHZ 20PF T/H |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 500 pcs |
|---|---|---|---|---|---|
| $0.247 | $0.206 | $0.185 | $0.165 | $0.157 | |
| 1000 pcs | 2500 pcs | 5000 pcs | 10000 pcs | ||
| $0.132 | $0.124 | $0.119 | $0.115 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ECS-92.1-20-4 | Manufacturer | ECS Inc. International |
|---|---|---|---|
| Description | CRYSTAL 9.2160MHZ 20PF T/H | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 171429 pcs | Data sheet | HC-49USCrystal Part Numbering Guide |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.447" L x 0.183" W (11.35mm x 4.65mm) | Series | HC-49US |
| Ratings | - | Packaging | Bulk |
| Package / Case | HC-49/US | Other Names | ECS92.1204 X168 |
| Operating Temperature | -10°C ~ 70°C | Operating Mode | Fundamental |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Load Capacitance | 20pF |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Height - Seated (Max) | 0.138" (3.50mm) |
| Frequency Tolerance | ±30ppm | Frequency Stability | ±50ppm |
| Frequency | 9.216MHz | ESR (Equivalent Series Resistance) | 60 Ohms |
| Detailed Description | 9.216MHz ±30ppm Crystal 20pF 60 Ohms HC-49/US |
