ECS-42-12-7SX-TR

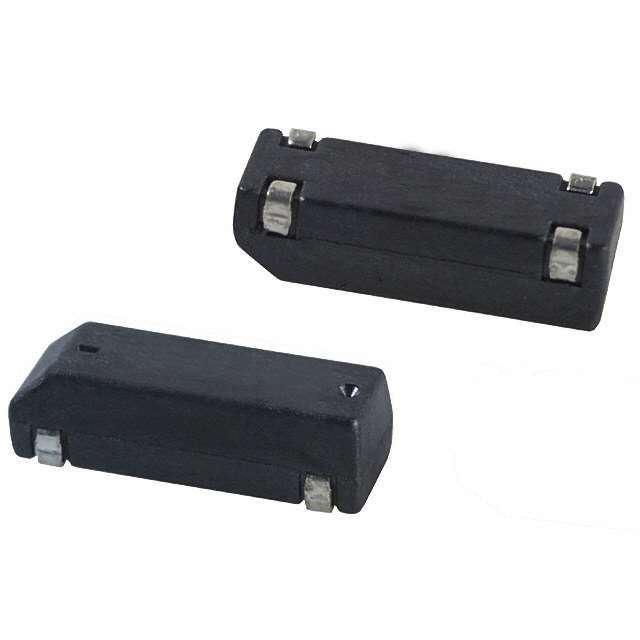

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECS-42-12-7SX-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ECS-42-12-7SX-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECS-42-12-7SX-TR |
|---|---|
| Manufacturer | ECS Inc. International |
| Description | CRYSTAL 4.194304MHZ 12PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | 5000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.394 | $0.374 | $0.361 | $0.347 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ECS-42-12-7SX-TR | Manufacturer | ECS Inc. International |
|---|---|---|---|
| Description | CRYSTAL 4.194304MHZ 12PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54330 pcs | Data sheet | ECX-3SX Series DatasheetCrystal Part Numbering Guide |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.492" L x 0.181" W (12.50mm x 4.60mm) | Series | ECX-3SX |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SOJ, 9.40mm pitch | Other Names | ECS42127SXTR XC1230TR |
| Operating Temperature | -10°C ~ 70°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 19 Weeks | Load Capacitance | 12pF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.146" (3.70mm) |
| Frequency Tolerance | ±30ppm | Frequency Stability | ±50ppm |
| Frequency | 4.194304MHz | ESR (Equivalent Series Resistance) | 150 Ohms |
| Detailed Description | 4.194304MHz ±30ppm Crystal 12pF 150 Ohms 4-SOJ, 9.40mm pitch |
