ECS-147.4-20-5PXDU-TR

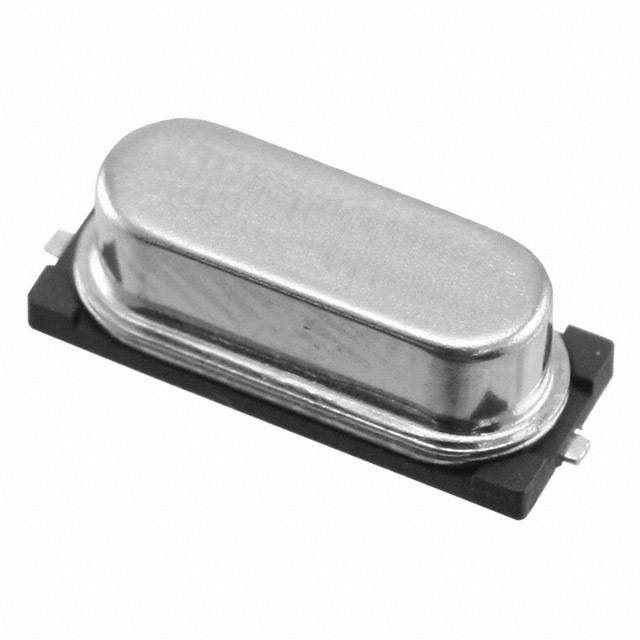

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECS-147.4-20-5PXDU-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ECS-147.4-20-5PXDU-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECS-147.4-20-5PXDU-TR |
|---|---|
| Manufacturer | ECS Inc. International |
| Description | CRYSTAL 14.7456MHZ 20PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 500 pcs |
|---|---|---|---|---|---|
| $0.408 | $0.36 | $0.336 | $0.297 | $0.281 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ECS-147.4-20-5PXDU-TR | Manufacturer | ECS Inc. International |
|---|---|---|---|
| Description | CRYSTAL 14.7456MHZ 20PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69461 pcs | Data sheet | CSM-7x-DU Series DatasheetCrystal Part Numbering Guide |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.449" L x 0.189" W (11.40mm x 4.80mm) | Series | CSM-7X-DU |
| Ratings | - | Packaging | Cut Tape (CT) |
| Package / Case | HC-49/US | Other Names | XC1534CT |
| Operating Temperature | -55°C ~ 125°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Load Capacitance | 20pF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.169" (4.30mm) |
| Frequency Tolerance | ±30ppm | Frequency Stability | ±100ppm |
| Frequency | 14.7456MHz | ESR (Equivalent Series Resistance) | 40 Ohms |
| Detailed Description | 14.7456MHz ±30ppm Crystal 20pF 40 Ohms HC-49/US |
