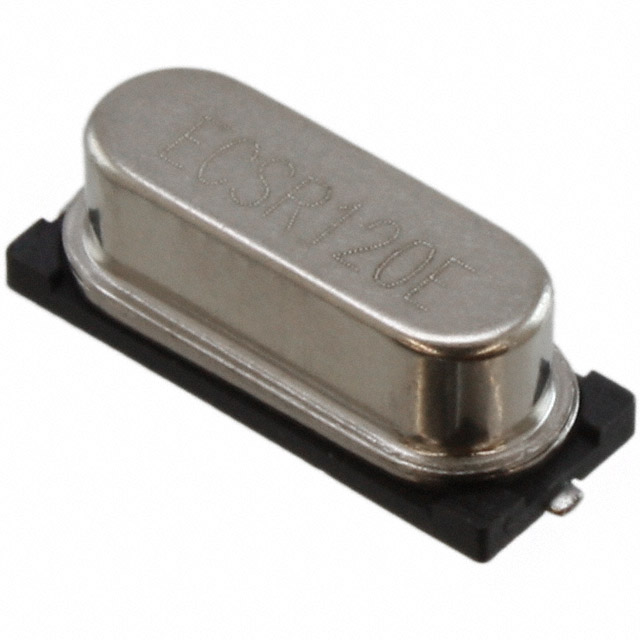

ECS-120-20-5PDN-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECS-120-20-5PDN-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ECS-120-20-5PDN-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECS-120-20-5PDN-TR |
|---|---|
| Manufacturer | ECS Inc. International |
| Description | CRYSTAL 12.0000MHZ 20PF SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 500 pcs |
|---|---|---|---|---|---|
| $0.401 | $0.353 | $0.33 | $0.292 | $0.276 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ECS-120-20-5PDN-TR | Manufacturer | ECS Inc. International |
|---|---|---|---|
| Description | CRYSTAL 12.0000MHZ 20PF SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 74556 pcs | Data sheet | CSM-7 SeriesCrystal Part Numbering Guide |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.449" L x 0.189" W (11.40mm x 4.80mm) | Series | CSM-7 |
| Ratings | - | Packaging | Original-Reel® |
| Package / Case | HC-49/US | Other Names | XC736DKR |
| Operating Temperature | -40°C ~ 85°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Load Capacitance | 20pF |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Height - Seated (Max) | 0.169" (4.30mm) |
| Frequency Tolerance | ±30ppm | Frequency Stability | ±100ppm |
| Frequency | 12MHz | ESR (Equivalent Series Resistance) | 50 Ohms |
| Detailed Description | 12MHz ±30ppm Crystal 20pF 50 Ohms HC-49/US |
