ECS-100-20-28A-TR

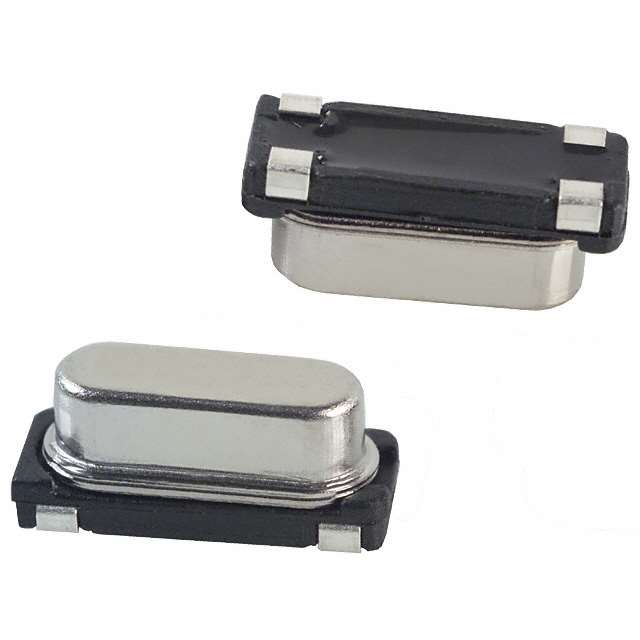

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECS-100-20-28A-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ECS-100-20-28A-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECS-100-20-28A-TR |
|---|---|
| Manufacturer | ECS Inc. International |
| Description | CRYSTAL 10.0000MHZ 20PF SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | 5000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.247 | $0.239 | $0.231 | $0.222 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ECS-100-20-28A-TR | Manufacturer | ECS Inc. International |
|---|---|---|---|
| Description | CRYSTAL 10.0000MHZ 20PF SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 97739 pcs | Data sheet | CSM-4ACrystal Part Numbering Guide |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.492" L x 0.191" W (12.50mm x 4.85mm) | Series | CSM-4A |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | HC-49/US | Other Names | ECS-100-20-28A ECS1002028ATR XC756TR |
| Operating Temperature | -10°C ~ 70°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Load Capacitance | 20pF |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Height - Seated (Max) | 0.197" (5.00mm) |
| Frequency Tolerance | ±30ppm | Frequency Stability | ±50ppm |
| Frequency | 10MHz | ESR (Equivalent Series Resistance) | 60 Ohms |
| Detailed Description | 10MHz ±30ppm Crystal 20pF 60 Ohms HC-49/US |
