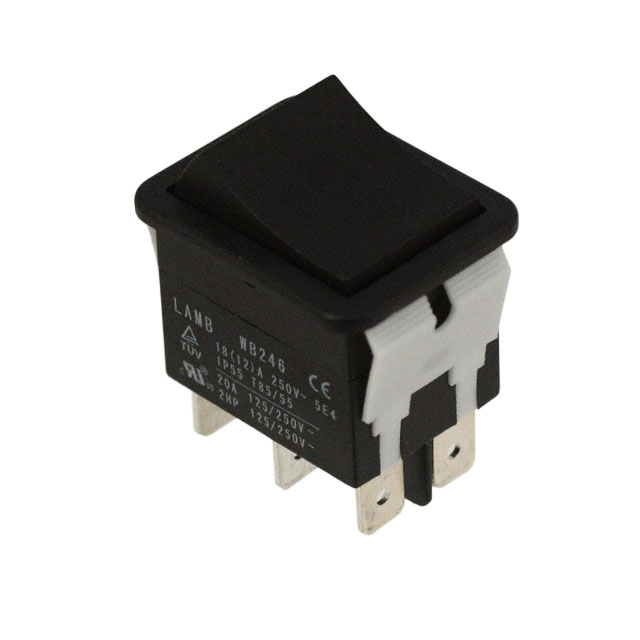

WB246D1100
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WB246D1100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy WB246D1100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | WB246D1100 |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH ROCKER DPDT 20A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.36 | $2.187 | $2.072 | $2.043 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.014 | $1.957 | $1.784 | $1.612 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | WB246D1100 | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH ROCKER DPDT 20A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22374 pcs | Data sheet | WB2 Series DatasheetWB246D1100 Drawing |
| Category | Switches | Voltage Rating - AC | 125V |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Switch Function | On-Off-On |
| Series | WB2, LAMB | Panel Cutout Dimensions | Rectangular - 30.00mm x 22.00mm |
| Packaging | Bulk | Other Names | EG4761 |
| Operating Temperature | -20°C ~ 65°C | Mounting Type | Panel Mount, Snap-In |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP55 - Dust Protected, Water Resistant | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Features | - |
| Electrical Life | - | Detailed Description | Rocker Switch DPDT 20A (AC) 125V Panel Mount, Snap-In |
| Current Rating | 20A (AC) | Color - Actuator/Cap | Black |
| Circuit | DPDT | Actuator Type | Concave (Curved) |
| Actuator Marking | No Marking |
