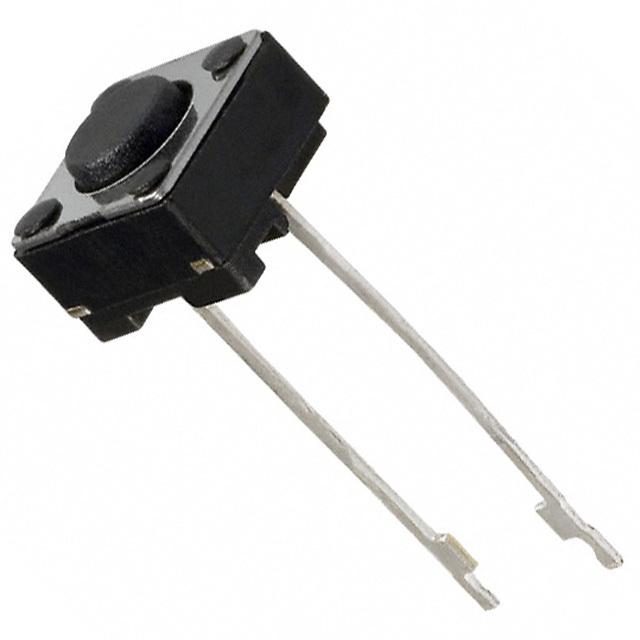

TL59NF160Q
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL59NF160Q with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL59NF160Q with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL59NF160Q |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 5000 pcs | |||
|---|---|---|---|---|---|
| $0.06 | $0.05 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL59NF160Q | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 400486 pcs | Data sheet | TL59, TL58 Series DatasheetTL59NF160Q Drawing |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | TL59 | Packaging | Tape & Box (TB) |
| Outline | 6.20mm x 6.20mm | Other Names | EG2532TB P010560 TL59F160Q |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 160gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 100,000 Cycles | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 12VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | Polybutylene Terephthalate (PBT) |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 4.30mm |
