TL3700AF100QG

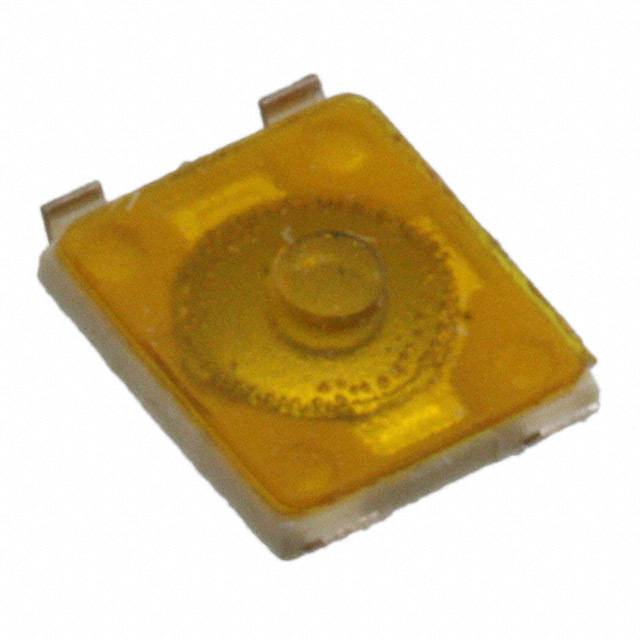

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL3700AF100QG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL3700AF100QG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL3700AF100QG |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TACTILE SPST-NO 0.02A 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.271 | $0.26 | $0.246 | $0.218 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.199 | $0.19 | $0.185 | $0.148 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL3700AF100QG | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 155691 pcs | Data sheet | TL3700 Series FlyerTL3700 Series DatasheetTL3700AF100QG Drawing |
| Category | Switches | Termination Style | Gull Wing |
| Switch Travel | 0.15mm | Switch Function | Off-Mom |
| Series | TL3700 | Packaging | Cut Tape (CT) |
| Outline | 3.00mm x 2.60mm | Other Names | EG4918CT |
| Operating Temperature | -40°C ~ 85°C | Operating Force | 100gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 100,000 Cycles | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.02A @ 15VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 0.65mm |
