TL3305AF260QG

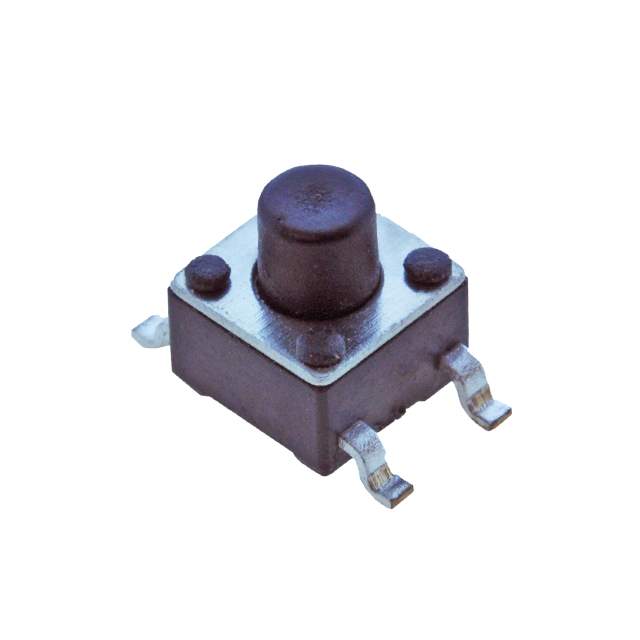

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL3305AF260QG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL3305AF260QG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL3305AF260QG |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TACTILE SPST-NO 50MA 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.078 | $0.077 | $0.074 | $0.071 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.067 | $0.063 | $0.061 | $0.046 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL3305AF260QG | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 50MA 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 523167 pcs | Data sheet | TL3305AF260QG Drawing TL3305 Series Datasheet |
| Category | Switches | Termination Style | Gull Wing |
| Switch Travel | 0.20mm | Switch Function | Off-Mom |
| Series | TL3305 | Packaging | Cut Tape (CT) |
| Outline | 4.50mm x 4.50mm | Other Names | EG5353CT |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 260gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 200,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | - | Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount |
| Contact Rating @ Voltage | 0.05A @ 12VDC | Circuit | SPST-NO |
| Actuator Type | Standard | Actuator Orientation | Top Actuated |
| Actuator Material | - | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 3.80mm |
